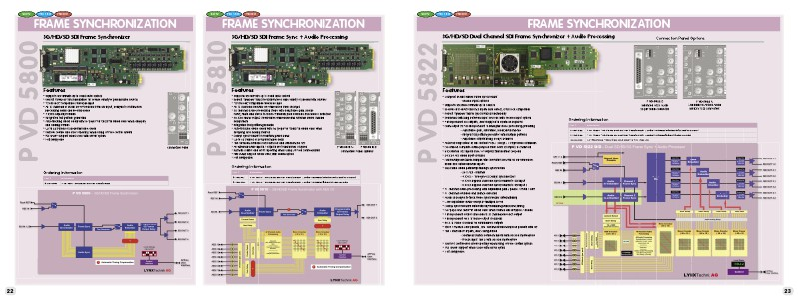

LYNX Series 5000 - October 2013 October 2013 | Page 22

HD 1.5G SDTV HD 3G FRAME SYNCHRONIZATION P VD 5800 3G/HD/SD SDI Frame Synchronizer HD 1.5G HD 3G FRAME SYNCHRONIZATION 3G/HD/SD SDI Frame Sync + Audio Processing Features P VD 5810 SDTV Features • Supports SDI formats up to 3Gbit (auto-detect) • Robust “?ywheel” synchronization for a wide variety of problematic sources • “Cross lock” compatible reference input • All 16 channels of audio de-embedded from SDI input, delayed to match video processing delay and re-embedded • 4 x SDI outputs provided • Integrated test pattern generator • Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames • Up to 62 frames of programmable delay • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable Connection Panel • Supports SDI formats up to 3Gbit (auto-detect) • Robust “?ywheel” synchronization for a wide variety of problematic sources • “Cross lock” compatible reference input • All 16 channels of audio de-embedded from SDI input • 32 channel audio processing stage with adjustable gain, phase invert, mute and stereo to mono mixdown plus overload and silence detection • 32 x 32 mono output crossbar for embedder and external audio channel assignment • Integrated test pattern generator • Auto-tracking audio delay with no “pops” or “clicks” in audio even when dropping and adding frames • DolbyE Synchronizer to maintain guard band • Up to 62 frames of programmable delay • Two versions available for balanced and unbalanced AES • All external audio inputs / outputs are transformer coupled • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable P VD 5810 U P VD 5810 D Connection Panel Options Ordering Information Ordering Information Part # 6155105800 22 Description P VD 5800 - 3G/HD/SD SDI Frame Synchronizer Part # Description 6155015810 P VD 5810 U - 3G/HD/SD SDI Frame Synchronizer + Audio Processing (unbalanced AES3id on MiniDin) 6155005810 P VD 5810 D - 3G/HD/SD SDI Frame Synchronizer + Audio Processing (balanced AES3 on SubD)
