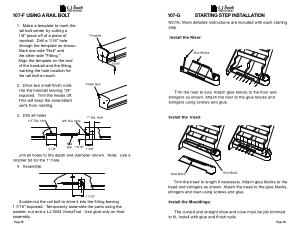

107-F USING A RAIL BOLT |
107-G STARTING STEP INSTALLATION |
||
1 . Make a template to mark the rail bolt center by cutting a 1 / 8 " piece off of a piece of handrail . Drill a 1 / 16 " hole through the template as shown . Mark one side " Rail " and the other side " Fitting ." Align the template on the end of the handrail and the fitting , marking the hole location for the rail bolt on each . |
Template |
15 / 16 " |
NOTE : More detailed instructions are included with each starting step .
Install the Riser :
Glue Blocks
|
2 . Drive two small finish nails into the handrail leaving 1 / 8 " exposed . Trim the heads off . This will keep the assembled parts from rotating . |
Finish Nail |
Trim the riser to size . Attach glue blocks to the floor and stringers as shown . Attach the riser to the glue blocks and stringers using screws and glue . |
3 . Drill all holes :
1 / 4 " Dia . Hole
|
3 / 8 " Dia . Hole |
1 " Dia . Hole |
Install the Tread : |
