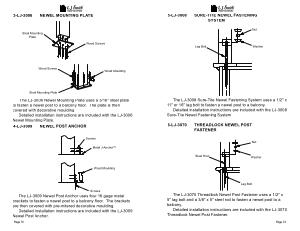

3-LJ-3006 |
NEWEL MOUNTING PLATE |
5-LJ-3008 |
SURE-TITE NEWEL FASTENING SYSTEM |
Steel Mounting Plate
Nut
Wood Screws Lag Bolt
Washer
Wood Screws Wood Moulding
Steel Mounting Plate
The LJ-3006 Newel Mounting Plate uses a 3 / 16 " steel plate to fasten a newel post to a balcony floor . The plate is then covered with decorative moulding .
Detailed installation instructions are included with the LJ-3006 Newel Mounting Plate .
4-LJ-3009 NEWEL POST ANCHOR
Screws
Metal J-Anchor™
The LJ-3008 Sure-Tite Newel Fastening System uses a 1 / 2 " x 11 " or 16 " lag bolt to fasten a newel post to a balcony .
Detailed installation instructions are included with the LJ-3008 Sure-Tite Newel Fastening System
6-LJ-3070
THREADLOCK NEWEL POST FASTENER
Nut
Steel Rod Washer
Wood Moulding
Lag Bolt
The LJ-3009 Newel Post Anchor uses four 16 gage metal brackets to fasten a newel post to a balcony floor . The brackets are then covered with pre-mitered decorative moulding .
Detailed installation instructions are included with the LJ-3009 Newel Post Anchor .
Page 73
Screws
The LJ-3070 Threadlock Newel Post Fastener uses a 1 / 2 " x 5 " lag bolt and a 3 / 8 " x 5 " steel rod to fasten a newel post to a balcony .
Detailed installation instructions are included with the LJ-3070 Threadlock Newel Post Fastener .
Page 74
