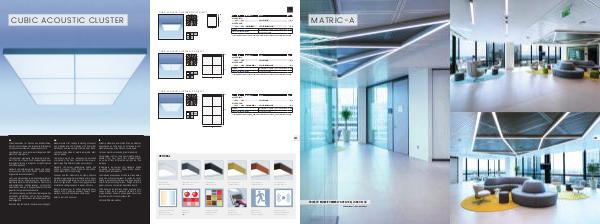

CUBIC ACOUSTIC CLUSTER SINGLE / DIRECT |
CUBIC ACOUSTIC CLUSTER |
120˚
90˚
60˚
|
150˚ |
180˚
135 270 405
|
150˚ |
120˚
90˚
60˚
|
60
L1
|
L1 L2 LUMEN / WATT CODE KG ACOUSTIC ONLY:
600 600- CA9CE-C1x1-W 4,0 ACOUSTIC-LIGHT:
|
30˚ |
540 0˚ |
30˚ |
150˚ |
180˚ |
150˚ |
60 |
L1 L2 LUMEN / WATT CODE KG |
120˚ |
120˚ |
ACOUSTIC ONLY: |
||
90˚ |
135 |
90˚ |
1200 1200- CA9CE-C2x2-W 16,0 |
|
60˚ |
270 405 |
60˚ |
ACOUSTIC-LIGHT: |
|
30˚ |
540 0˚ |
30˚ |
1200 1200 4x4300lm / 45W * CA9CEE- ### M-C2x2-W 16,0 |
|||||
150˚ |
180˚ |
150˚ |
60 |
L1 L2 LUMEN / WATT CODE KG |
120˚ |
120˚ |
ACOUSTIC ONLY: |
||
90˚ |
135 |
90˚ |
1800 1200- CA9CE-C2x3-W 16,0 |
|
60˚ |
270 405 |
60˚ |
ACOUSTIC-LIGHT: |
|
30˚ |
540 0˚ |
30˚ |
1800 1200 6x4300lm / 45W * CA9CEE- ### M-C2x3-W 16,0 |
|
Systembaukasten für Decken aus direktstrahlenden LED Lichtmodulen und reinen Akustikmodulen mit akustisch wirksamem, opalem Spanntextil. |
Modular system for ceilings consisting of acoustic only modules and LED modules with direct light distribution and acoustically effective, opal fabric. |
Système modulaire pour plafond fait de modules acoustiques et LEDs avec un éclairage direct. Module acoustique très efficace, textile opale. |
|||||||||||
|
Leuchtenkörper aus Aluminium-Strangpress-Profil silbermatt natureloxiert.
LED-Konverter wahlweise schaltbar oder dimmbar( 1-10V, DALI, Touch-Dim). Werkseitige Konverterprogrammierung ermöglicht unterschiedliche Lichtstromoptionen.
Standard LED-Farbtemperatur 3000K und 4000K. Auf Wunsch 2200K, 2700K, 3500K, 5000K, 6500K. Enge Farbtoleranz MacAdam 3.
Licht- und Akustikmodule als hochwirksame Breitbandabsorber zur Regulierung der Nachhallzeit. Wahlweise einzeln montierbar oder zu Clustern mit unterschiedlichen Konfigurationen verknüpfbar. Einheitliches Design in ausgeschaltetem Zustand garantiert aufgeräumtes Deckenbild.
Lichtstromrückgang auf 80 % des Ursprungswertes bei 50000h( L80B10 bei 25 ° C und max. Medium- Power). 5 Jahre Garantie auf LED-Module und LED- Betriebsgeräte.
|
Luminaire body made of aluminium-profile. Matt silver anodised.
LED drivers which can optionally be switched or dimmed( 1-10V, DALI, Touch-Dim). Factory programming offers different lumen output levels.
Standard LED colour temperature 3000K and 4000K. On request 2200K, 2700K, 3500K, 5000K, 6500K. MacAdam 3 step binning.
Acoustic and LED modules to be highly effective absorbers regulating the reverberation time. Possible to install as single version or in clusters with different configurations. Uniform design guarantees uncluttered ceiling look even in power-off state.
80 % of initial output for 50000 operating hours( L80B10 at 25 ° C and max. Medium-Power). 5 year warranty on all LED boards and LED drivers.
Refer to " options " overview
|
Corps en aluminium extrudé, gris mat anodisé.
Convertisseur LED au choix: commutable ou graduable( 1-10V, DALI, Touch-Dim). Programmation en usine offrant différentes options de flux lumineux.
Température de couleur LED standard 3000K ou 4000K. Sur demande: 2200K, 2700K, 3500K, 5000K, 6500K( MacAdam 3).
Les modules acoustiques et LEDs sont des absorbeurs très efficaces régissant le temps de réverbération. Installation simple ou en grappe possible avec différentes configurations. Design uniforme garanti avec une conception de plafond épuré.
50 000 heures de fonctionnement avec une utilisation à 80 % de la puissance( L80B10 à 25 ° C et max. Medium-Power). 5 ans de garantie sur tous les modules LED et convertisseurs LED.
Voir les différentes options
|
OPTIONAL |
WHITE KROKO SURFACE CODE: K: |
SPARKLING ANTHRACITE SURFACE CODE: D |
BLACK RAVEN SURFACE CODE: B |
MAJESTIC GOLD SURFACE CODE: G |
COZY COPPER SURFACE CODE: M |
STALWART RUST SURFACE CODE: U |
||||
Beachten Sie die Übersicht `optionale Ausführungen` |
|||||||||||||
ALTERNATIVE COLOUR TEMPERATURES: 2200K / 3500K / 6500K |
LEDS WITH HIGHER CRI Ra > 90 |
FURTHER SELECTED SURFACE DESIGNS: SEE PAGE 15 |
BLUETOOTH MODULE FOR WIRELESS CONTROL |
EMERGENCY MODULE WITH 3 HOUR BATTERY |
RADAR SENSOR FOR HIGH FREQUENCY MOTION CONTROL |
