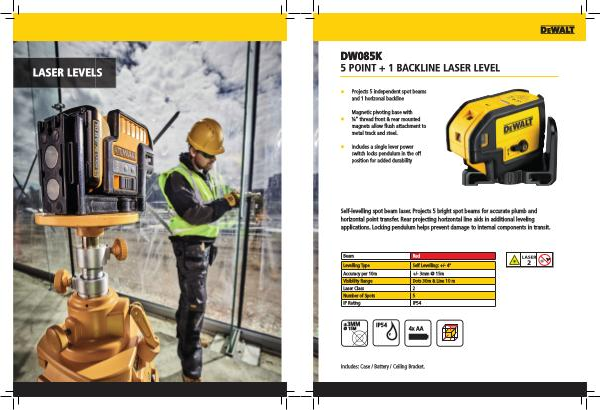

DW085K 5 POINT + 1 BACKLINE LASER LEVEL
Projects 5 independent spot beams and 1 horizonal backline
Magnetic pivoting base with ¼ ” thread front & rear mounted magnets allow flush attachment to metal track and steel .
Includes a single lever power switch locks pendulum in the off position for added durability
Self-levelling spot beam laser . Projects 5 bright spot beams for accurate plumb and horizontal point transfer . Rear projecting horizontal line aids in additional leveling applications . Locking pendulum helps prevent damage to internal components in transit .
Beam
Red Levelling Type Self Levelling : +/ - 4 ° Accuracy per 10m Visibility Range
Laser Class |
2 |
Number of Spots |
5 |
IP Rating
+/ - 3mm @ 15m Dots 30m & Line 10 m
IP54
± 3MM
@ 15M
IP54
4x AA
Includes : Case / Battery / Ceiling Bracket .
