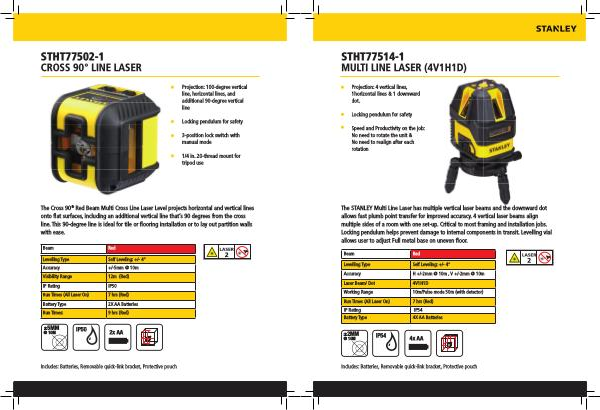

STHT77514-1 MULTI LINE LASER ( 4V1H1D )
Projection : 4 vertical lines , 1horizontal lines & 1 downward dot .
Locking pendulum for safety
Speed and Productivity on the job : No need to rotate the unit & No need to realign after each rotation
The STANLEY Multi Line Laser has multiple vertical laser beams and the downward dot allows fast plumb point transfer for improved accuracy . 4 vertical laser beams align multiple sides of a room with one set-up . Critical to most framing and installation jobs . Locking pendulum helps prevent damage to internal components in transit . Levelling vial allows user to adjust Full metal base on uneven floor .
Beam
Red Levelling Type Self Leveling : +/ - 4 ° Accuracy
H +/ -2mm @ 10m , V +/ -2mm @ 10m
Laser Beam / Dot |
4V1H1D |
Working Range |
10m / Pulse mode 50m ( with detector ) |
Run Times ( All Laser On ) |
7 hrs ( Red ) |
IP Rating |
IP54 |
Battery Type |
4X AA Batteries |
± 2MM
@ 10M
IP54
4x AA
Includes : Batteries , Removable quick-link bracket , Protective pouch
