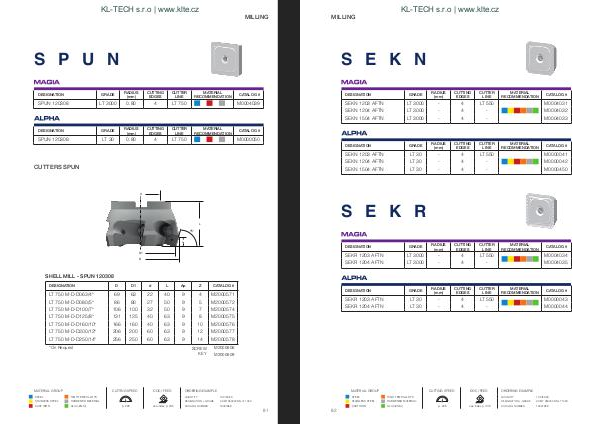

LAMINA - katalog | KL-TECH s.r.o. | www.klte.cz Lamina | Page 82

KL-TECH s.r.o | www.klte.cz
MILLING
S P U N
GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
LT 3000 0.80 4 LT 750
DESIGNATION GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
SPUN 120308 LT 30 0.80 4 LT 750
DESIGNATION
SPUN 120308
MATERIAL
RECOMMENDATION
CATALOG #
M0004039
MATERIAL
RECOMMENDATION
CATALOG #
M0000050
CUTTERS SPUN
d
L
75°
Ap
D1
D
SHELL MILL - SPUN 120308
DESIGNATION
LT 750 M-D-D063/4*
D D1 d L Ap Z CATALOG #
69 63 22 40 9 4 M2000571
LT 750 M-D-D080/5* 86 80 27 50 9 5 M2000572
LT 750 M-D-D100/7* 106 100 32 50 9 7 M2000574
LT 750 M-D-D125/8* 131 125 40 63 9 8 M2000575
LT 750 M-D-D160/10* 166 160 40 63 9 10 M2000576
LT 750 M-D-D200/12* 206 200 60 63 9 12 M2000577
LT 750 M-D-D250/14* 256 250 60 63 9 14 M2000578
*On Request
MATERIAL GROUP
SCREW
KEY
CUTTING SPEED
STEEL HIGH TEMP ALLOYS
STAINLESS STEEL HARDENED MATERIAL
CAST IRON ALU(>8%Si)
p. 226
DOC / FEED
see index p. 335
M2000606
M2000609
ORDERING EXAMPLE
QUANTITY 10 PIECES
DESIGNATION + GRADE CCMT 060204 NN LT 1000
CATALOG NUMBER T0001888
