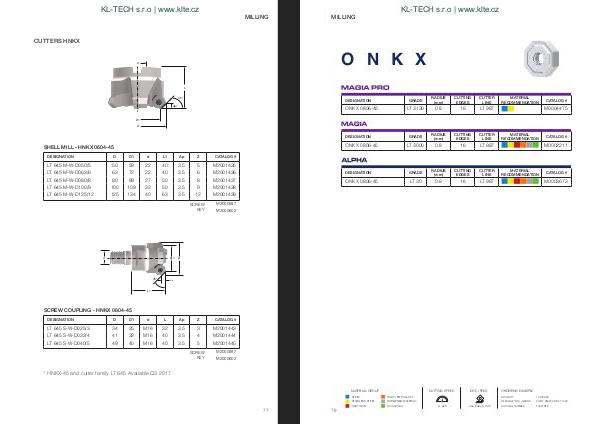

MILLING
CUTTERS HNKX
d
L
45°
Ap1
D1
D
SHELL MILL - HNKX 0604-45
D D1 d L1 Ap Z CATALOG #
LT 645 M-W-D050/5 50 59 22 40 3.5 5 M2001435
LT 645 M-W-D063/6 63 72 22 40 3.5 6 M2001436
LT 645 M-W-D080/8 80 89 27 50 3.5 8 M2001437
LT 645 M-W-D100/9 100 109 32 50 3.5 9 M2001438
LT 645 M-W-D125/12 125 134 40 63 3.5 12 M2001439
DESIGNATION
d
D1
45°
SCREW
KEY M2000597
M2000602
D
Ap
L1
SCREW COUPLING - HNKX 0604-45
DESIGNATION
D D1 d L Ap Z CATALOG #
LT 645 S-W-D025/3 34 25 M16 32 3.5 3 M2001443
LT 645 S-W-D032/4 41 32 M16 40 3.5 4 M2001444
LT 645 S-W-D040/5 49 40 M16 40 3.5 5 M2001445
SCREW
KEY
M2000597
M2000602
* HNKX-45 and cutter family LT 645 Available Q3 2017
