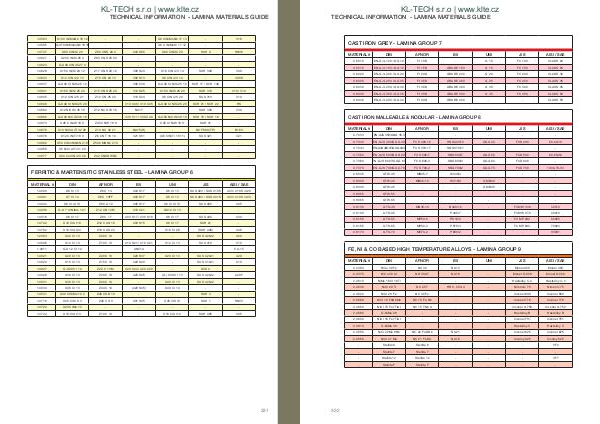

TECHNICAL INFORMATION - LAMINA MATERIALS GUIDE
CAST IRON GREY - LAMINA GROUP 7
MATERIAL #
DIN AFNOR B5 UNI JIS AISI / SAE
0.6010 EN-GJL 100 / GG 10 Ft 10D - G 10 FC 100 CLASS 20
0.6015 EN-GJL 150 / GG 15 Ft 15D GRADE 150 G 15 FC 150 CLASS 25
0.6020 EN-GJL 200 / GG 20 Ft 20D GRADE 220 G 20 FC 200 CLASS 30
0.6025 EN-GJL 250 / GG 25 Ft 25D GRADE 260 G 25 FC 250 CLASS 35
0.6030 EN-GJL 300 / GG 30 Ft 30D GRADE 300 G 30 FC 300 CLASS 45
0.6035 EN-GJL 350 / GG 35 Ft 35D GRADE 350 G 35 FC 350 CLASS 50
0.6040 EN-GJL 400 / GG 40 Ft 40D GRADE 400 - - CLASS 55
AISI / SAE
CAST IRON MALLEABLE & NODULAR - LAMINA GROUP 8
MATERIAL #
DIN AFNOR B5 UNI JIS 0.7033 EN-GJS 350/GGG 35.3 - - - - -
0.7040 EN-GJS 400/GGG 40 FCS 400-12 SNG420/12 GGG 40 FCD 400 60-40-18
0.7043 EN-GJS 400-15/GGG 40.3 FCS 370-17 SNG370/17 - - -
0.7050 EN-GJS 500/GGG 50 FCS 500-7 SNG500/7 GGG 50 FCD 500 80-55-06
0.7060 EN-GJS 6007/GGG 60 FCS 600-3 SNG600/3 GGG 60 FCD 600 -
0.7070 EN-GJS 700/GGG 70 FCS 700-2 SNG700/2 GGG 70 FCD 700 1000-70-03
0.8035 GTW-35 MB35-7 W340/3 - - -
0.8040 GTW-40 MB40-10 W410/4 GMB40 - -
0.8045 GTW-45 - - GMB45 - -
0.8055 GTW-55 - - - - -
0.8065 GTW-65 - - - - -
0.8135 GTS-35 MN35-10 B340/12 - FCMW 330 32510
0.8145 GTS-45 - P440/7 - FCMW 370 40010
0.8155 GTS-55 MP50-5 PS10/4 - FCMP 490 50005
0.8165 GTS-65 MP60-3 P570/3 - FCMP 540 70003
0.8170 GTS-70 M870-2 P690/2 - - 90001
AISI / SAE
FE, NI & CO BASED HIGH TEMPERATURE ALLOYS - LAMINA GROUP 9
MATERIAL #
332
DIN AFNOR B5 UNI JIS 2.4360 NiCu 30 Fe NU 30 NA13 - Monel 400 Monel 400
2.4375 NiCu 30 AI ND 30 AT NA18 - Monel K-500 Monel K-500
2.4610 NiMo 16Cr 16Ti - - - Hastelloy C-4 Hastelloy C-4
2.4630 NiCr 20 Ti NC 20 T HR 5, 203-4 - Nimonic 75 Nimonic 75
2.4642 NiCr 29 Fe NC 30 Fe - - Inconel 690 Inconel 690
2.4668 NiCr 19 FeNbMo NC 19 Fe Nb - - Inconel 718 Inconel 718
2.4669 NiCr 15 Fe7TiAI NC 15 TNb A - - Inconel X-750 Inconel X-750
2.4685 G-NiMo 28 - - - Hastelloy B Hastelloy B
2.4694 NiCr 16 Fe7TiAI - - - Inconel 751 Inconel 751
2.4810 G-NiMo 30 - - - Hastelloy C Hastelloy C
2.4856 NiCr 22Mo 9Nb NC 22 FeDNb NA21 - Inconel 625 Inconel 625
2.4858 NiCr 21 Mo NC 21 FeDU NA16 - Incoloy 825 Incoloy 825
- Stellite 6 Stellite 6 - - - VF2
- Stellite 7 Stellite 7 - - - -
- Stellite 12 Stellite 12 - - - VF7
- Stellite F Stellite F - - - -
