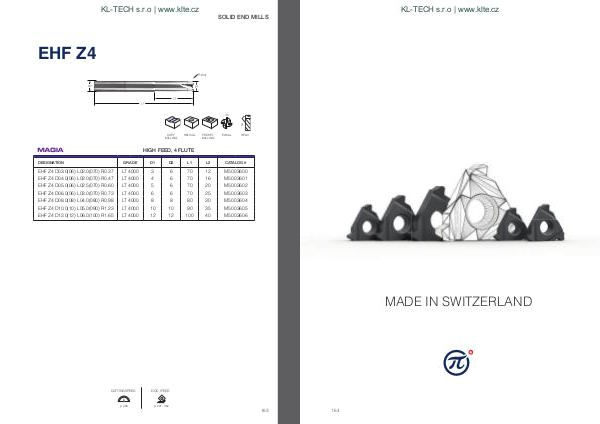

SOLID END MILLS
EHF Z4
4fl
0°
COPY
MILLING
HELICAL
POCKET
MILLING
EQUAL
HELIX
HIGH FEED, 4 FLUTE
DESIGNATION
GRADE D1 D2 L1 L2 CATALOG #
EHF Z4 D03.0(06) L02.0(070) R0.37 LT 4000 3 6 70 12 M5003600
EHF Z4 D04.0(06) L02.0(070) R0.47 LT 4000 4 6 70 16 M5003601
EHF Z4 D05.0(06) L02.5(070) R0.60 LT 4000 5 6 70 20 M5003602
EHF Z4 D06.0(06) L03.0(070) R0.73 LT 4000 6 6 70 25 M5003603
EHF Z4 D08.0(08) L04.0(080) R0.98 LT 4000 8 8 80 30 M5003604
EHF Z4 D10.0(10) L05.0(090) R1.23 LT 4000 10 10 90 35 M5003605
EHF Z4 D12.0(12) L06.0(100) R1.65 LT 4000 12 12 100 40 M5003606
CUTTING SPEED
p. 290
DOC / FEED
p. 291 - 302
