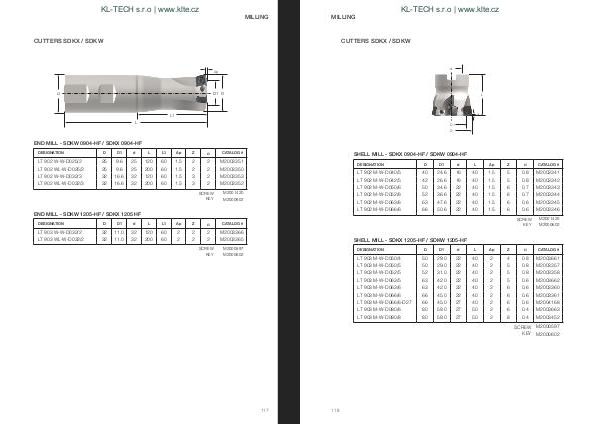

MILLING
CUTTERS SDKX / SDKW
Ap
D1 D
d
L1
L
END MILL - SDKW 0904-HF / SDKX 0904-HF
DESIGNATION
α 2 M2003351
2 M2003350
3 2 M2003353
3 2 M2003352
D D1 d L L1 Ap Z
LT 902 W-W-D025/2 25 9.6 25 120 60 1.5 2
LT 902 WL-W-D025/2 25 9.6 25 200 60 1.5 2
LT 902 W-W-D032/3 32 16.6 32 120 60 1.5 LT 902 WL-W-D032/3 32 16.6 32 200 60 1.5
SCREW
KEY
CATALOG #
M2001420
M2000602
END MILL - SDKW 1205-HF / SDKX 1205 HF
DESIGNATION
D D1 d L L1 Ap Z
LT 903 W-W-D032/2 32 11.0 32 120 60 2 2
LT 903 WL-W-D032/2 32 11.0 32 200 60 2 2
α
CATALOG #
2 M2003366
2 M2003365
SCREW
KEY
M2000597
M2000602
