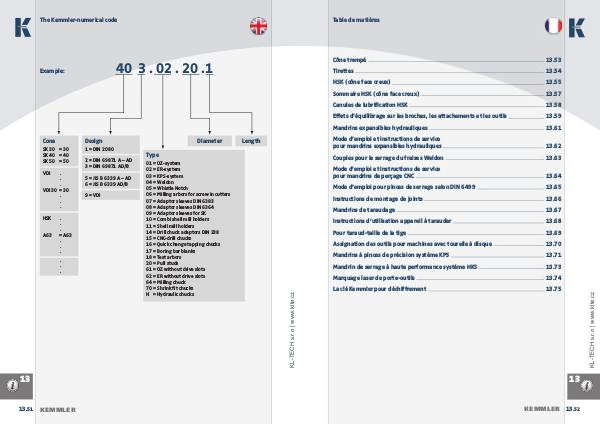

The Kemmler-numerical code
40  3 . 02 .   20 .1
Cone Design
SK 30 = 30
SK 40 = 40
SK 50 = 50 1 = DIN 2080
VDI
.
.
.
VDI 30 = 30
.
.
.
HSK
A63
.
.
.
= A63
.
.
.
.
.
.
13
13. 51
KEMMLER
2 = DIN 69871 A – AD
3 = DIN 69871 AD/B
5 = JIS B 6339 A – AD
6 = JIS B 6339 AD/B
9 = VDI
Diameter
Length
Type
01 = OZ-system
02 = ER-system
03 = KPS-system
04 = Weldon
05 = Whistle Notch
06 = Milling arbors for screw in cutters
07 = Adaptor sleeves DIN 6383
08 = Adaptor sleeves DIN 6364
09 = Adaptor sleeves for SK
10 = Combi shell mill holders
11 = Shell mill holders
14 = Drill chuck adaptors DIN 238
15 = CNC-drill chucks
16 = Quick change tapping chucks
17 = Boring bar blanks
18 = Test arbors
20 = Pull studs
61 = OZ without drive slots
62 = ER without drive slots
64 = Milling chuck
70 = Shrink fi t chucks
H = Hydraulic chucks
www.klte.cz
Example:
