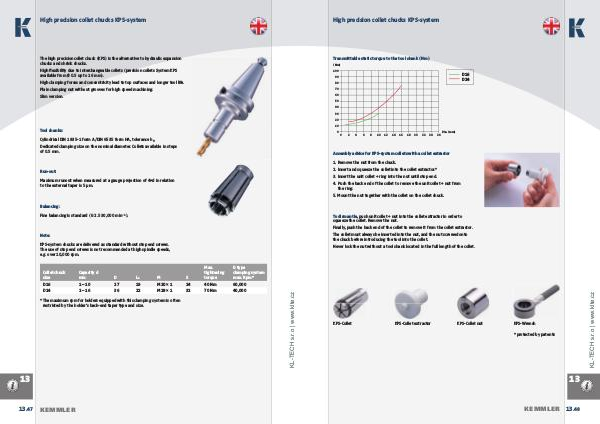

High precision collet chucks KPS-system
Transmittable static torque to the tool shank (Nm)
(Nm)
100
D16
D24
90
80
70
60
50
40
30
20
10
0
0
2
4
6
8
10
12
14
16
18
20
22
24
26
Dia. (mm)
Assembly advice for KPS-system collets with a collet extractor
1. Remove the nut from the chuck.
2. Insert and squeeze the collet into the collet extractor.*
3. Insert the unit collet + ring into the nut until stop end.
4. Push the back end of the collet to remove the unit collet + nut from
the ring.
5. Mount the nut together with the collet on the collet chuck.
To dismantle, push unit collet + nut into the collet extractor in order to
squeeze the collet. Remove the nut.
Finally, push the back end of the collet to remove it from the collet extractor.
The collet must always be inserted into the nut, and the nut screwed onto
the chuck before introducing the tool into the collet.
KPS-Collet
KPS-Collet extractor
KPS-Collet nut
www.klte.cz
Never lock the nut without a tool shank located in the full length of the collet.
KPS-Wrench
* protected by patents
