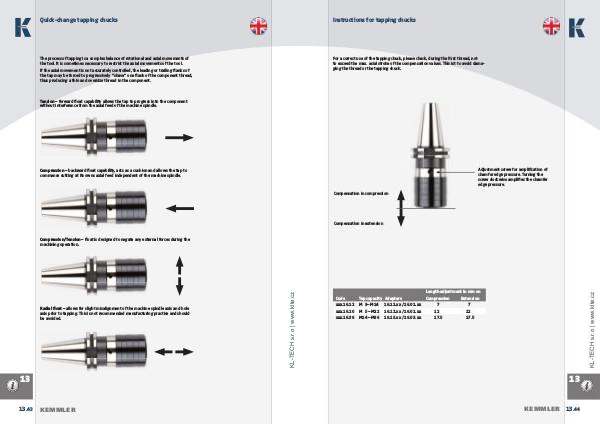

Instructions for tapping chucks
For a correct use of the tapping chuck, please check, during the fi rst thread, not
to exceed the max. asial stroke of the compensation values. This ist to avoid dama-
ging the thread or the tapping chuck.
Adjustment screw for amplifi cation of
chamfer edge pressure. Turning the
screw clockwise amplifi es the chamfer
edge pressure.
Compensation in compression
Compensation in extension
Tap capacity Adapters
M 3– M14 16.11.xx / 16.01.xx
Compression
7
xxx.16.20 M 5 – M22 16.12.xx / 16.02.xx 12 12
xxx.16.36 M14 – M36 16.13.xx / 16.03.xx 17.5 17.5
www.klte.cz
Length adjustment in mm on
Code
xxx.16.12
Extension
7
13
KEMMLER 13. 44
