DIN 69063-1 (ISO 12164-1) Form A DIN 69063-2 (ISO 12164-1) Form B
Standard type for machining centres and milling machines.
HSK for automatic tool change with gripper groove and
index notch. Manual operation is via access hole in taper.
Form B relies on driving dogs on the joint face as shank
isn‘t slotted. Torque is transmitted through highly
accurate connnection. For machining centres, milling and turning machines.
With enlarged fl ange size for rigid machining. For
automatic tool change. Coolant supply through the
fl ange. Drive keys at the fl ange. Hole for data carrier
DIN STD 69873 at the fl ange.
DIN 69063-1 (ISO 12164-1) Form C DIN 69063-2 (ISO 12164-2) Form D
For transfer lines, special machines and modular tooling
systems. HSK for manual tool change. Operation is via
access hole in taper. Form D relies on driving dogs on the
joint face as shank isn‘t slotted. Torque is transmitted
through highly accurate connnection. For special machines. With enlarged fl ange size for rigid
machining. For manual tool change. Coolant supply
through the fl ange. Drive keys at the fl ange.
DIN 69063-5 Form E
For high-speed applications. For automatic tool change.
HSK for automatic tool change. Torque is transmitted
through highly accurate connnection. Version with access
hole acc. to DIN 69893-1 by arrangement.
13
13. 33
KEMMLER
DIN 69063-6 Form F
For high-speed applications mainly in woodworking
industries. HSK for automatic tool change. Torque is
transmitted through highly accurate connnection. Version
with access hole acc. to DIN 69893-1 by arrangement.
www.klte.cz

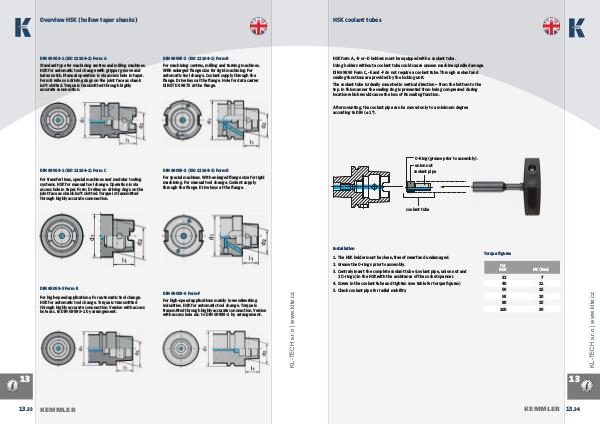

Overview HSK (hollow taper shanks)
