12
KEMMLER
12. 49
www.klte.cz
5600 0.30" "0.22~ 1600 (min-1)" 2100 "0.12~
0.18" 15~25m/min
thermorésistant

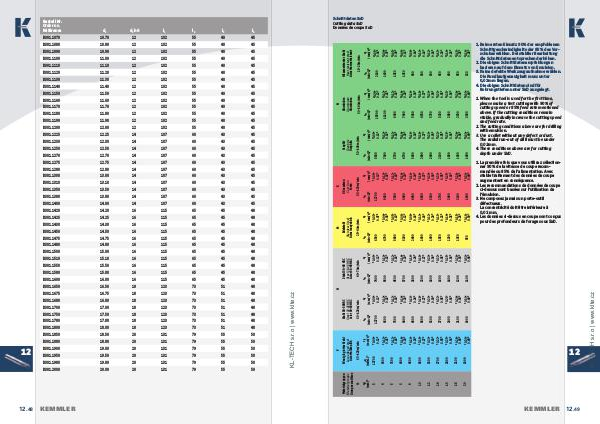

Schnittdaten 3xD
Cutting data 3xD
Données de coupe 3xD
1. Beim ersten Einsatz 90% der empfohlenen
Schnittgeschwindigkeit oder 85% des Vor-
schubes wählen. Bei stabiler Bearbeitung
die Schnittdaten entsprechend erhöhen.
2. Die obigen Schnittdatenempfehlungen
basieren auf dem Einsatz von Emulsion.
3. Keine defekte Werkzeugaufnahme wählen.
Die Rundlaufgenauigkeit muss unter
0,02mm liegen.
4. Die obigen Schnittdaten sind für
Bohrungstiefen unter 5xD ausgelegt.
1. When the tool is used for the fi rst time,
please make a test cutting with 90% of
cutting speed or 85% feed rate mentioned
above. If the cutting conditions remain
stable, gradually increase the cutting speed
and feed rate.
2. The cutting conditions above are for drilling
with emulsion.
3. Use a collet without any defect or dust.
The radial run-out of drill must be under
0.02mm.
4. These conditions above are for cutting
depth under 5xD.
1. La première fois que vous utilisez sélection-
ner 90% de la vitesse de coupe recom-
mandée ou 85% de l‘alimentation. Avec
stable traitement des données de coupe
augmentent en conséquence.
2. Les recommandations de données de coupe
ci-dessus sont basées sur l‘utilisation de
l‘émulsion.
3. Ne composez jamais un porte-outil
défectueux.
La concentricité doit être inférieure à
0,02 mm.
4. Les données ci-dessus en coupe sont conçus
pour des profondeurs de forage sous 5xD.
