12

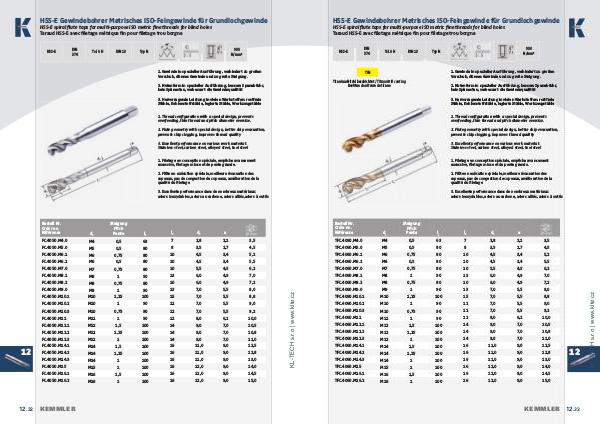

HSS-E Gewindebohrer Metrisches ISO-Feingewinde für Grundlochgewinde
HSS-E spiral flute taps for multi-purpose ISO metric fine threads for blind holes Taraud HSS-E avec filetage métrique fin pour filetage trou borgne
HSS-E
DIN 374
Tol. 6 H DIN 13 Typ N
900 N / mm ²
TiN
Titanium Nitrid beschichtet / Titannitrid coating Revêtue de nitrure de titane
1. Gewinde in spezieller Ausführung, verhindert zu großen Vorschub, dünnes Gewinde und zu große Steigung.
2. Nutenform in spezieller Ausführung, bessere Spanabfuhr, kein Spänestau, verbessert die Gewindequalität
3. Hervorragende Leistung in vielen Werkstoffen: rostfreie Stähle, Kohlenstoffstähle, legierte Stähle, Werkzeugstähle
1. Thread configuration with a special design, prevents overfeeding, thin thread and pitch diameter oversize.
2. Flute geometry with special design, better chip evacuation, prevents chip clogging, improves thread quality
3. Excellent performance on various work material: Stainless steel, carbon steel, alloyed steel, tool steel
1. Filetage en conception spéciale, empêche avancement excessive, filetage mince et de pente grande.
2. Flûte en exécution spéciale, meilleure évacuation des copeaux, pas de congestion de copeaux, amélioration de la qualité du filetage
3. Excellente performance dans de nombreux matériaux: aciers inoxydables, aciers au carbone, aciers alliés, aciers à outils
Bestell Nr. Steigung
Order no. Pitch
Référence d 1 Pente l 1 l 2 d 2 a
TFC. 4060. M4.0
M4
0,5
63
7
2,8
2,1
3,5
TFC. 4060. M5.0
M5
0,5
80
8
3,5
2,7
4,5
TFC. 4060. M6.1
M6
0,75
80
10
4,5
3,4
5,2
TFC. 4060. M6.2
M6
0,5
80
10
4,5
3,4
5,5
TFC. 4060. M7.0
M7
0,75
80
10
5,5
4,3
6,2
TFC. 4060. M8.1
M8
1
90
13
6,0
4,9
7,0
TFC. 4060. M8.2
M8
0,75
80
10
6,0
4,9
7,2
TFC. 4060. M9.0
M9
1
90
13
7,0
5,5
8,0
TFC. 4060. M10.1
M10
1,25
100
15
7,0
5,5
8,8
TFC. 4060. M10.2
M10
1
90
12
7,0
5,5
9,0
TFC. 4060. M10.3
M10
0,75
90
12
7,0
5,5
9,2
TFC. 4060. M11
M11
1
90
12
8,0
6,2
10,0
TFC. 4060. M12.1
M12
1,5
100
14
9,0
7,0
10,5
TFC. 4060. M12.2
M12
1,25
100
14
9,0
7,0
10,8
TFC. 4060. M12.3
M12
1
100
14
9,0
7,0
11,0
TFC. 4060. M14.1
M14
1,5
100
16
11,0
9,0
12,5
TFC. 4060. M14.2
M14
1,25
100
16
11,0
9,0
12,8
TFC. 4060. M14.3
M14
1
100
16
11,0
9,0
13,0
TFC. 4060. M15
M15
1
100
16
12,0
9,0
14,0
TFC. 4060. M16.1
M16
1,5
100
16
12,0
9,0
14,5
TFC. 4060. M16.2
M16
1
100
16
12,0
9,0
15,0

12
