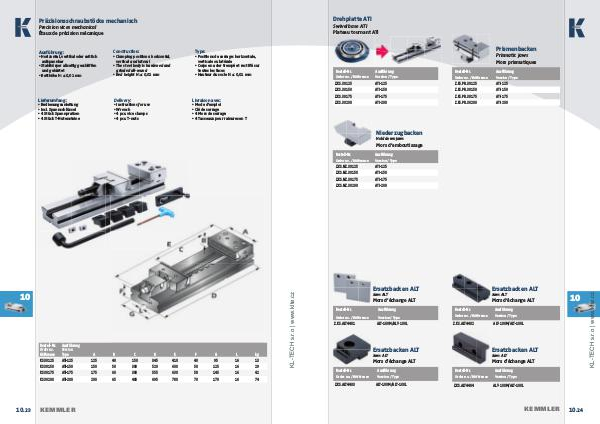

Präzisionsschraubstöcke mechanisch
Precision vices mechanical Étaux de précision mécanique
Ausführung:
• Horizontal, vertikal oder seitlich aufspannbar
• Stahlkörper allseitig geschliffen und gehärtet
• Betthöhe H: ≤ 0,01 mm
Construction:
• Clamping positions: horizontal, vertical and lateral
• The steel body is hardened and grinded all-round
• Bed height H: ≤ 0,01 mm
Type:
• Positions de serrage: horizontale, verticale ou latérale
• Corps en acier trempé et rectifié sur toutes les faces
• Hauteur du socle H: ≤ 0,01 mm
Lieferumfang:
• Bedienungsanleitung
• Incl. Spannschlüssel
• 4 Stück Spannpratzen
• 4 Stück T-Nutensteine
Delivery:
• Instructions for use
• Wrench
• 4 pcs. vice clamps
• 4 pcs. T-nuts
Livraison avec:
• Mode d‘ emploi
• Clé de serrage
• 4 Mors de serrage
• 4 Tasseaux pour rainures en T
10
Bestell-Nr. Order no. Référence |
Ausführung Version Type |
A |
B |
C |
D |
E |
F |
G |
L |
kg |
KS30125 |
ATI-125 |
125 |
40 |
150 |
345 |
410 |
40 |
95 |
16 |
13 |
KS30150 |
ATI-150 |
150 |
50 |
300 |
520 |
600 |
50 |
125 |
16 |
29 |
KS30175 |
ATI-175 |
175 |
60 |
300 |
555 |
630 |
58 |
145 |
16 |
42 |
KS30200 |
ATI-200 |
200 |
65 |
400 |
695 |
780 |
70 |
170 |
16 |
74 |
