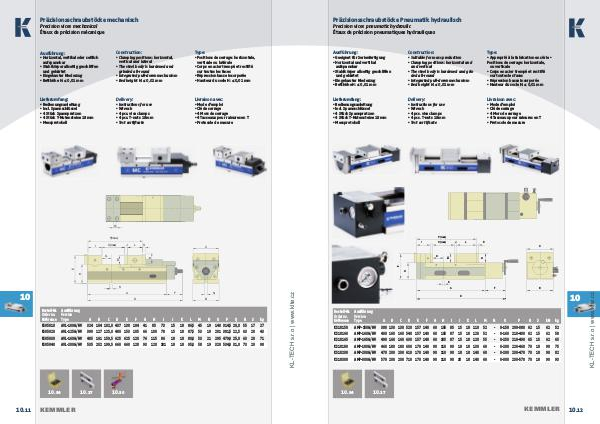

Präzisionsschraubstöcke mechanisch
Precision vices mechanical
Étaux de précision mécanique
Ausführung: Construction: Type:
Lieferumfang: Delivery: Livraison avec:
• Clamping positions: horizontal,
vertical and lateral
• The steel body is hardened and
grinded all-round
• Integrated pull-down mechanism
• Bed height H: ≤ 0,01 mm
• Horizontal, vertikal oder seitlich
aufspannbar
• Stahlkörper allseitig geschliffen
und gehärtet
• Eingebauter Niederzug
• Betthöhe H: ≤ 0,01 mm
• Bedienungsanleitung
• Incl. Spannschlüssel
• 4 Stück Spannpratzen
• 4 Stück T-Nutensteine 18mm
• Messprotokoll
• Instructions for use
• Wrench
• 4 pcs. vice clamps
• 4 pcs. T-nuts 18mm
• Test certifi cate
• Positions de serrage: horizontale,
verticale ou latérale
• Corps en acier trempé et rectifi é
sur toutes les faces
• Répression basse incorporée
• Hauteur du socle H: ≤ 0,01 mm
• Mode d‘emploi
• Clé de serrage
• 4 Mors de serrage
• 4 Tasseaux pour rainures en T
• Protocole de mesure
Q
P(max)
O(max)
I
J
L
S
G
C
A
10
N
B
Bestell-Nr.
Order no.
Référence
KS05010 Ausführung
Version
Type
AVL-100G/HV A
B
C
D
E
F
G
324 104 102,0 437 130 104 41 I
73 J
15 K
L
M
18 86,5 45 N
O
P
Q
R S
19 140 314,5 20,0 55 17 kg
27
KS05020 AVL-125G/HV 390 127 125,0 480 153 105 66 100 78 15 18 87,5 53 19 201 381,5 22,5 63 20 43
KS05030 AVL-160G/HV 485 161 159,5 625 625 120 76 115 86 18 18 80,0 53 21 295 479,0 25,0 63 20 71
KS05040 AVL-200G/HV 535 202 199,5 660 660 128 93 120 101 18 18 95,0 58 19 320 534,0 31,0 73 20 98
10.34
10. 11
F
D
KEMMLER
10.27
10.30
H
85
