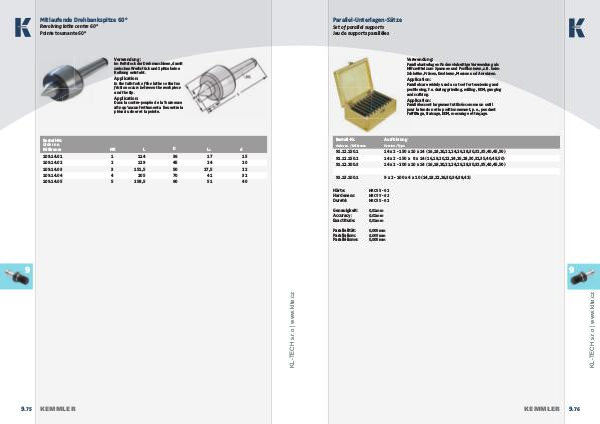

Parallel-Unterlagen-Sätze
Set of parallel supports
Jeu de supports parallèles
Verwendung:
Parallelunterlagen fi nden vielseitige Verwendung als
Hilfsmittel zum Spannen und Positionieren, z.B. beim
Schleifen, Fräsen, Erodieren, Messen und Anreissen.
Application:
Parallels are widely used as a tool for tensioning and
positioning, f.e. during grinding, milling, EDM, gauging
and scribing.
Application:
Parallèles sont largement utilisés comme un outil
pour la tension et le positionnement, p. e., pendant
l‘affûtage, fraisage, EDM, mesurage et traçage.
Ausführung
Order no. / Référence Version / Type
91.12.150.1 14 x 2 - 150 x 10 x 14 (16,18,20,22,24,26,28,30,32,35,40,45,50)
91.12.150.2 14 x 2 - 150 x 8 x 14 (16,18,20,22,24,26,28,30,32,35,40,45,50)
91.12.200.3 14 x 2 - 200 x 10 x 14 (16,18,20,22,24,26,28,30,32,35,40,45,50)
91.13.100.1 9 x 2 - 100 x 4 x 10 (14,18,22,26,30,34,38,42)
Härte:
Hardeness:
Dureté: HRC 55 - 62
HRC 55 - 62
HRC 55 - 62
Genauigkeit:
Accuracy:
Exactitude: 0,01mm
0,01mm
0,01mm
Parallelität:
Parallelism:
Parallélisme: 0,005mm
0,005mm
0,005mm
