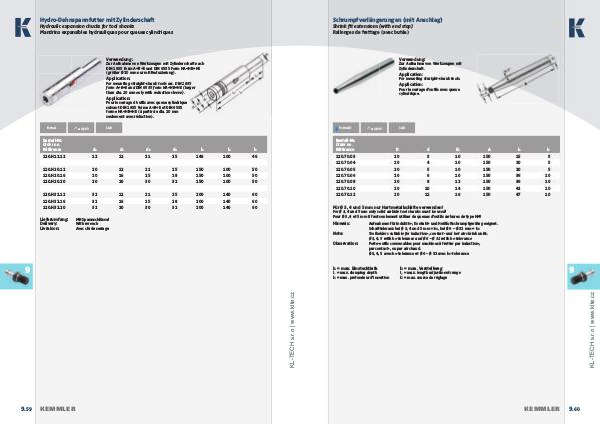

Schrumpfverlängerungen (mit Anschlag)
Shrink fi t extensions (with end stop)
Rallonges de frettage (avec butée)
Verwendung:
Zur Aufnahme von Werkzeugen mit
Zylinderschaft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue
cylindrique.
F Form AD
≤ 0,003
CAD
Bestell-Nr.
Order no.
Référence D d D 1 A l 1 l 2
120.70.03 20 3 10 150 15 5
120.70.04 20 4 10 150 20 5
120.70.05 20 5 10 150 20 5
120.70.06 20 6 10 150 36 10
120.70.08 20 8 12 150 36 10
120.70.10 20 10 14 150 42 10
120.70.12 20 12 16 150 47 10
Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden!
For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used!
Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘outils carbures de type HM!
Note:
Observation:
Aufnahmen für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 3, 4 und 5 mm = h 4 , bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 3, 4, 5 with h 4 -tolerance and Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud.
Ø 3, 4, 5 avec h 4 -tolerance et Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion l 2 = max. length adjustment range
l 2 = max. course de réglage
