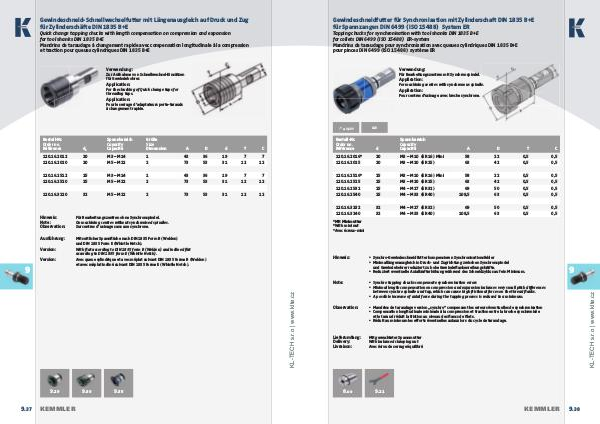

Gewindeschneid-Schnellwechselfutter mit Längenausgleich auf Druck und Zug
für Zylinderschäfte DIN 1835 B+E
Quick change tapping chucks with length compensation on compression and expansion
for tool shanks DIN 1835 B+E
Mandrins de taraudage à changement rapide avec compensation longitudinale à la compression
et traction pour queues cylindriques DIN 1835 B+E
Verwendung:
Zur Aufnahme von Schnellwechsel-Einsätzen
für Gewindebohrer.
Application:
For the chucking of Quick change taps for
threading taps.
Application:
Pour le serrage d‘adaptateurs porte-tarauds
à changement rapide.
Bestell-Nr.
Order no.
Référence
d 1 Spannbereich
Capacity
Capacité Größe
Size
Dimension
120.16.2012 20 M3 – M14 120.16.2020 20 M5 – M22 120.16.2512 25 120.16.2520 25 120.16.3220 32 A D d 1 43 36 19 7 7
2 73 53 31 12 12
M3 – M14 1 43 36 19 7 7
M5 – M22 2 73 53 31 12 12
M5 – M22 2 73 53 31 12 12
Hinweis:
Note:
Observation: Für Bearbeitungszentren ohne Synchronspindel.
On machining centres without synchronised spindles.
Sur centres d‘usinage sans axe synchrone.
Ausführung: Mit seitlicher Spannfl äche nach DIN 1835 Form B (Weldon)
und DIN 1835 Form E (Whistle Notch).
With fl at according to DIN 1835 form B (Weldon) and inclined fl at
according to DIN 1835 form E (Whistle Notch).
Avec queue cylindrique et avec méplat suivant DIN 1835 forme B (Weldon)
et avec méplat incliné suivant DIN 1835 forme E (Whistle Notch).
Version:
Version:
