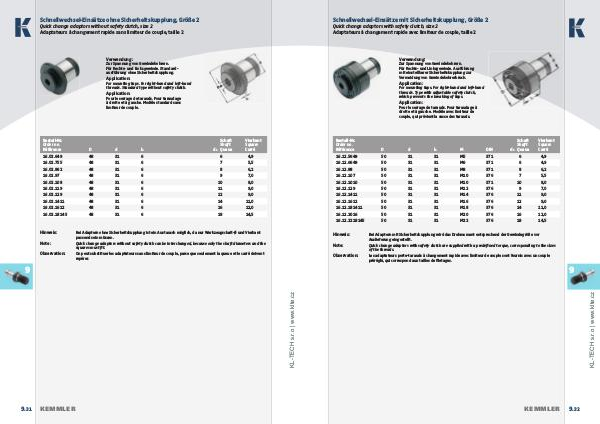

Schnellwechsel-Einsätze ohne Sicherheitskupplung, Größe 2
Quick change adaptors without safety clutch, size 2
Adaptateurs à changement rapide sans limiteur de couple, taille 2
Verwendung:
Zur Spannung von Gewindebohrern.
Für Rechts- und Linksgewinde. Standard-
ausführung ohne Sicherheitskupplung.
Application:
For mounting taps. For right-hand and left-hand
threads. Standard type without safety clutch.
Application:
Pour le serrage de tarauds. Pour taraudage
à droite et à gauche. Modèle standard sans
limiteur de couple.
Bestell-Nr.
Order no.
Référence D d l 1 16.02.649 48 31 6 6 4,9
16.02.755 48 31 6 7 5,5
16.02.862 48 31 6 8 6,2
16.02.97 48 31 6 9 7,0
16.02.108 48 31 6 10 8,0
16.02.119 48 31 6 11 9,0
16.02.129 48 31 6 12 9,0
16.02.1411 48 31 6 14 11,0
16.02.1612 48 31 6 16 12,0
16.02.18145 48 31 6 18 14,5
Hinweis:
Note:
Observation:
d 1
Schaft
Shaft
Queue
Vierkant
Square
Carré
Bei Adaptern ohne Sicherheitskupplung ist ein Austausch möglich, da nur Werkzeugschaft-Ø und Vierkant
passend sein müssen.
Quick change adaptors without safety clutch can be interchanged, because only the shaft diameters and the
squares must fi t.
On peut substituer les adaptateurs sans limiteur de couple, parce que seulement la queue et le carré doivent
repérer.
