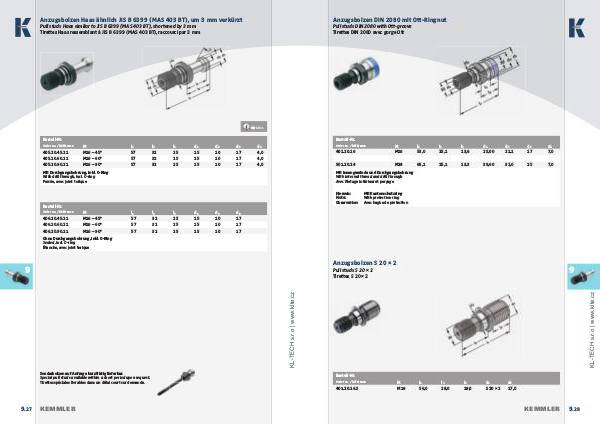

Anzugsbolzen DIN 2080 mit Ott-Ringnut
Pull studs DIN 2080 with Ott-groove
Tirettes DIN 2080 avec gorge Ott
Bestell-Nr.
Order no. / Référence
401.20.16 M
M16 l 1
53,0 l 2
25,1 l 3
13,6 d 1
25,00 d 2
21,1 d 3
17 d 4
7,0
501.20.24 M24 65,1 25,1 13,3 39,60 32,0 25 7,0
Mit Innengewinde und Durchgangsbohrung
With internal thread and drill through
Avec fi letage intérieur et perçage
Hinweis:
Note:
Observation:
Mit Kantenschutzring
With protection ring
Avec bague de protection
Anzugsbolzen S 20 × 2
9
www.klte.cz
Pull studs S 20 × 2
Tirettes S 20 × 2
Bestell-Nr.
Order no. / Référence
401.20.16.S
M
M16
l 1
56,0
l 2
28,0
l 3
19,0
d 1
S 20 × 2
d 3
17,0
KEMMLER
9. 28
