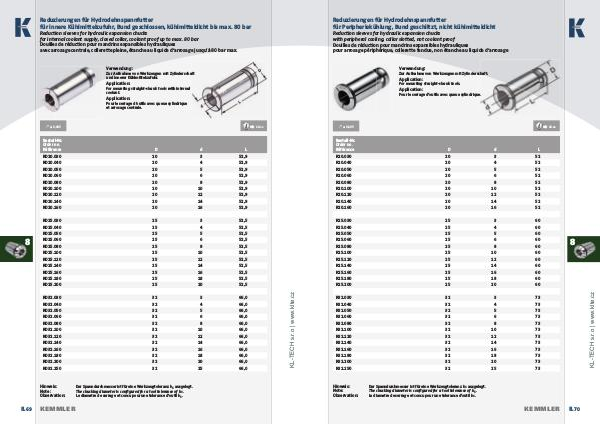

Reduzierungen für Hydrodehnspannfutter für innere Kühlmittelzufuhr, Bund geschlossen, kühlmitteldicht bis max. 80 bar
Reduction sleeves for hydraulic expansion chucks for internal coolant supply, closed collar, coolant proof up to max. 80 bar Douilles de réduction pour mandrins expansibles hydrauliques avec arrosage centrale, collerette pleine, étanche au liquide d‘ arrosage jusqu’ à 80 bar max.
Verwendung: Zur Aufnahme von Werkzeugen mit Zylinderschaft und innerer Kühlmittelzufuhr.
Application: For mounting straight-shank tools with internal coolant.
Application: Pour le serrage d’ outils avec queue cylindrique et arrosage centrale.
��≤ 0,005 �� 13. 04
Bestell-Nr. Order no. Référence
D
d
L
RD20.030
20
3
52,9
RD20.040
20
4
52,9
RD20.050
20
5
52,9
RD20.060
20
6
52,9
RD20.080
20
8
52,9
RD20.100
20
10
52,9
RD20.120
20
12
52,9
RD20.140
20
14
52,9
RD20.160
20
16
52,9

8

RD25.030
25
3
52,5
RD25.040
25
4
52,5
RD25.050
25
5
52,5
RD25.060
25
6
52,5
RD25.080
25
8
52,5
RD25.100
25
10
52,5
RD25.120
25
12
52,5
RD25.140
25
14
52,5
RD25.160
25
16
52,5
RD25.180
25
18
52,5
RD25.200
25
20
52,5
RD32.030
32
3
66,0
RD32.040
32
4
66,0
RD32.050
32
5
66,0
RD32.060
32
6
66,0
RD32.080
32
8
66,0
RD32.100
32
10
66,0
RD32.120
32
12
66,0
RD32.140
32
14
66,0
RD32.160
32
16
66,0
RD32.180
32
18
66,0
RD32.200
32
20
66,0
RD32.250
32
25
66,0
KL-TECH s. r. o | www. klte. cz
Hinweis:
Der Spanndurchmesser ist für eine Werkzeugtoleranz h 6 ausgelegt.
Note:
The chucking diameter is configured for a tool tolerance of h 6.
Observation:
Le diametre de serrage et concu pour une tolerance d‘ outil h 6.
