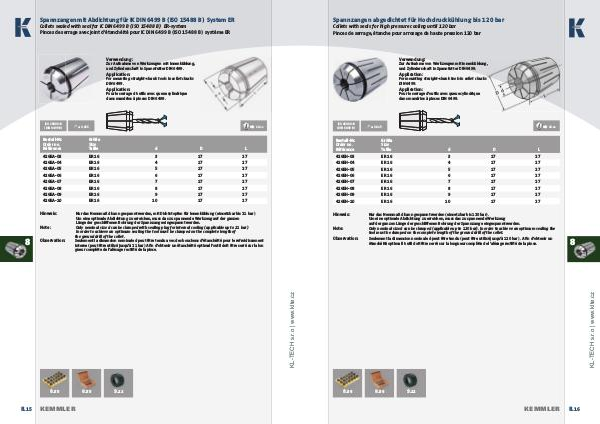

Spannzangen abgedichtet für Hochdruckkühlung bis 120 bar
Collets with seals for high pressure cooling until 120 bar
Pinces de serrage, étanche pour arrosage de haute pression 120 bar
Verwendung:
Zur Aufnahme von Werkzeugen mit Innenkühlung, ,
und Zylinderschaft in Spannfutter DIN 6499.
Application:
For mounting straight-shank tools in collet chucks
DIN 6499.
Application:
Pour le serrage d’outils avec queue cylindrique
dans mandrins à pinces DIN 6499.
ISO 15488-B
(DIN 6499 B)
≤ 0,015
13. 04
Bestell-Nr.
Order no.
Référence Größe
Size
Taille d D L
426EH-03 ER 16 3 17 27
426EH-04 ER 16 4 17 27
426EH-05 ER 16 5 17 27
426EH-06 ER 16 6 17 27
426EH-07 ER 16 7 17 27
426EH-08 ER 16 8 17 27
426EH-09 ER 16 9 17 27
426EH-10 ER 16 10 17 27
Hinweis:
Note:
8
www.klte.cz
Observation:
Nur das Nennmaß d kann gespannt werden (einsetzbar bis 120 bar).
Um eine optimale Abdichtung zu erreichen, muss das zu spannende Werkzeug
auf der ganzen Länge der geschliffenen Bohrung der Spannzange eingespannt werden.
Only nominal size d can be clamped (applicable up to 120 bar). In order to achieve an optimum sealing the
tool must be clamped on the complete length of the ground drill of the collet.
Seulement la dimension nominale d peut être tendu (peut être utilisé jusqu‘à 120 bar). Afi n d‘obtenir un
étanchéité optimal l‘outil doit être serré sur la longueur complète de l‘alésage rectifi é de la pince.
8.56
8.56
9.12
KEMMLER
8. 16
