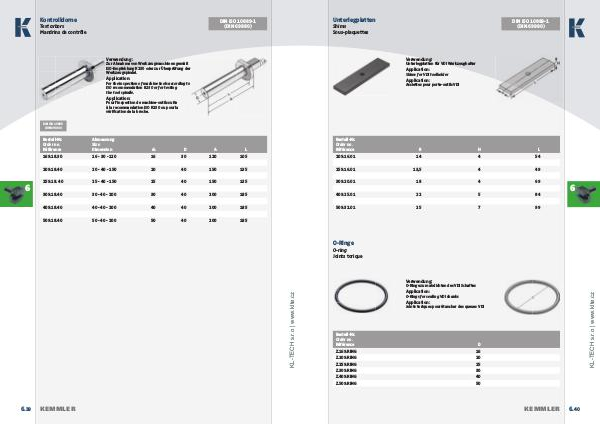

Kontrolldorne
DIN ISO 10889-1
(DIN 69880)
Test arbors
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application :
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la
vérifi cation de la broche.
DIN ISO 10889
(DIN 69880)
Abmessung
Size
Dimension d 1 D A L
169.18.30 16 - 30 - 120 16 30 120 105
209.18.40 20 - 40 - 150 20 40 150 135
259.18. 40 25 - 40 - 150 25 40 150 135
309.18.40 30 - 40 - 200 30 40 200 185
409.18.40 40 - 40 - 200 40 40 200 185
509.18.40 50 - 40 - 200 50 40 200 185
www.klte.cz
6
Bestell-Nr.
Order no.
Référence
6. 39
KEMMLER
