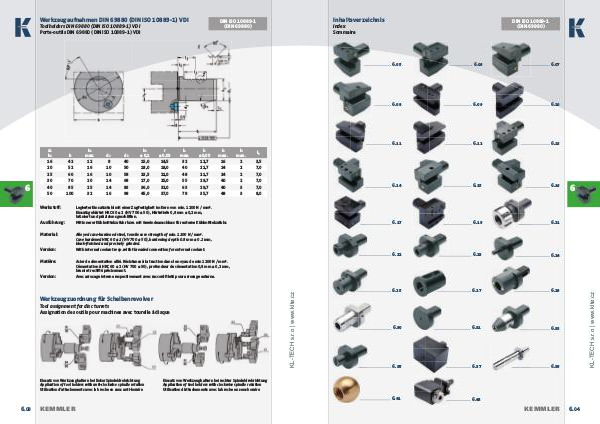

Werkzeugaufnahmen DIN 69880 (DIN ISO 10889-1) VDI
DIN ISO 10889-1
(DIN 69880)
Toolholders DIN 69880 (DIN ISO 10889-1) VDI
Porte-outils DIN 69880 (DIN ISO 10889-1) VDI
b
42 h 1
max.
12 d 2
8 d 3
40 h 2
± 0,1
15,0 r
± 0,02
14,5 l 1
max.
32 l 2
± 0,05
12,7 l 3
max.
16 l 4
max.
2 3,5
20 52 16 10 50 18,0 18,0 40 21,7 24 2 7,0
25 60 16 10 58 23,5 21,0 48 21,7 24 2 7,0
30 70 20 14 68 27,0 25,0 55 29,7 40 2 7,0
40 85 25 14 83 36,0 32,0 63 29,7 40 3 7,0
50 100 32 16 98 45,0 37,0 78 35,7 48 3 8,0
Werkstoff:
Ausführung:
Material:
Version:
Matière:
Version:
l 5
Legierter Einsatzstahl mit einer Zugfestigkeit im Kern von min. 1200 N / mm².
Einsatzgehärtet HRC 60 ± 2 (HV 700 ± 50), Härtetiefe 0,8 mm ± 0,2 mm,
brüniert und präzisionsgeschliffen.
Mit innerer Kühlmittelzufuhr bzw. mit Gewindeanschluss für externe Kühlmittelzufuhr.
Alloyed case-hardened steel, tensile core strength of min. 1200 N / mm².
Case hardened HRC 60 ± 2 (HV 700 ± 50), hardening depth 0.8 mm ± 0.2 mm,
black-fi nished and precisely grinded.
With internal coolant resp. with threaded connection for external coolant.
Acier de cémentation allié. Résistance à la traction dans le noyau de min 1200 N / mm².
Cémentation à HRC 60 ± 2 (HV 700 ± 50), profondeur de cémentation 0,8 mm ± 0,2 mm,
bruni et rectifi é précisement.
Avec arrosage interne respectivement avec raccord fi leté pour arrosage externe.
Werkzeugzuordnung für Scheibenrevolver
Tool assignment for disc turrets
Assignation des outils pour machines avec tourelle à disque
Einsatz von Werkzeughaltern bei linker Spindeldrehrichtung
Application of tool holders with anti-clockwise spindle rotation
Utilisation d’attachements avec la broche en sens anti-horaire
6. 03
KEMMLER
Einsatz von Werkzeughaltern bei rechter Spindeldrehrichtung
Application of tool holders with clockwise spindle rotation
Utilisation d’attachements avec la broche en sens horaire
www.klte.cz
6
d 1
h 6
16
