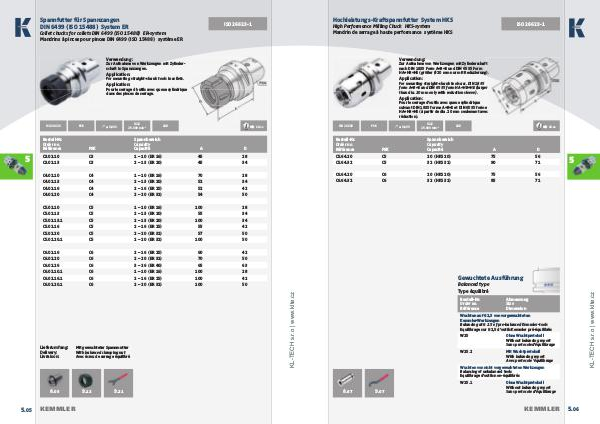

Hochleistungs-Kraftspannfutter System HKS
ISO 26623-1
High Performance Milling Chuck HKS-system
Mandrin de serrage à haute performance système HKS
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft
nach DIN 1835 Form A+B+E und DIN 6535 Form
HA+HB+HE (größer Ø 20 mm nur mit Reduzierung).
Application:
For mounting straight-shank tools acc. DIN 1835
form A+B+E and DIN 6535 form HA+HB+HE (larger
than dia. 20 mm only with reduction sleeve).
Application:
Pour le serrage d’outils avec queue cylindrique
suivant DIN 1835 forme A+B+E et DIN 6535 forme
HA+HB+HE (à partir de dia. 20 mm seulement avec
réduction).
ISO 26623
Bestell-Nr.
Order no.
Référence
≤ 0,003
PSK
G2,5
25.000 min -1
13. 04
CAD
PSK Spannbereich
Capacity
Capacité A D
C5.64.20
C5.64.32 C5
C5 20 (HKS 20)
32 (HKS 32) 75
90 56
71
C6.64.20
C6.64.32 C6
C6 20 (HKS 20)
32 (HKS 32) 75
85 56
71
5
Gewuchtete Ausführung
Bestell-Nr.
Order no.
Référence
www.klte.cz
Balanced type
Type équilibré
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocoled‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole ‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
8.67
9.07
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
KEMMLER
5. 06
