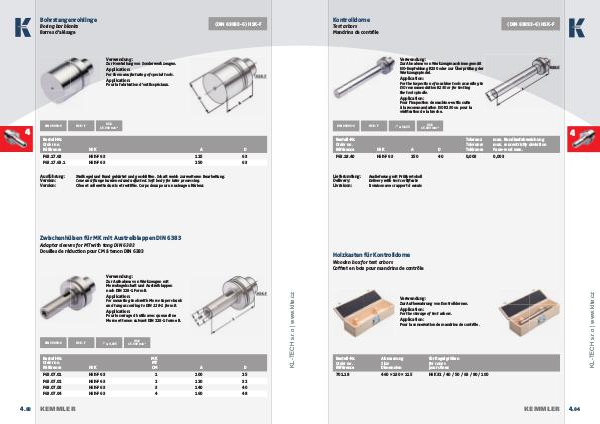

Kontrolldorne
(DIN 69893-6) HSK-F
Test arbors
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application :
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la
vérifi cation de la broche.
DIN 69893-6
G6,3
15.000 min -1
≤ 0,003
HSK - F
Bestell-Nr.
Order no.
Référence HSK A
F63.18.40 HSK-F 63 250
Lieferumfang:
Delivery:
Livraison:
D Toleranz
Tolerance
Tolérance max. Rundlaufabweichung
max. concentricity deviation
Faux-rond max.
40 0,003 0,003
4
Auslieferung mit Prüfprotokoll
Delivery with test certifi cate
Livraison avec rapport d essais
Holzkasten für Kontrolldorne
www.klte.cz
Wooden box for test arbors
Coffret en bois pour mandrins de contrôle
Verwendung:
Zur Aufbewahrung von Kontrolldornen.
Application:
For the storage of test arbors.
Application:
Pour la conservation de mandrins de contrôle.
Bestell-Nr.
Order no.
Référence Abmessung
Size
Dimension für Kegelgrößen
for cones
pour cônes
701.18 460 × 130 × 115 HSK 32 / 40 / 50 / 63 / 80 / 100
KEMMLER
4. 84
