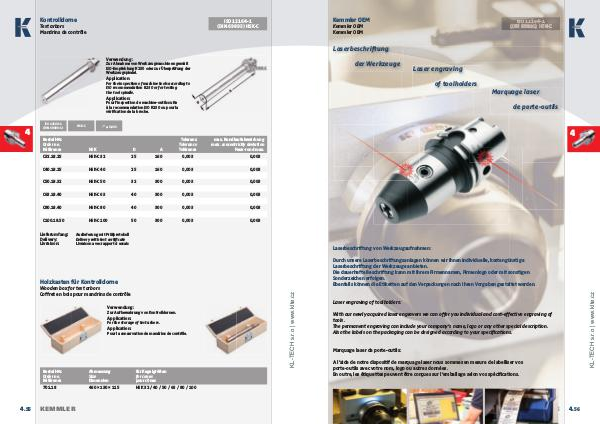

Kontrolldorne
ISO 12164-1
(DIN 69893) HSK-C
Test arbors
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application :
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la
vérifi cation de la broche.
4
ISO 12164-1
(DIN 69893-1)
≤ 0,003
HSK -C
Bestell-Nr.
Order no.
Référence HSK
C32.18.25
Toleranz
Tolerance
Tolérance
max. Rundlaufabweichung
max. concentricity deviation
Faux-rond max.
D A HSK-C 32 25 160 0,003 0,003
C40.18.25 HSK-C 40 25 160 0,003 0,003
C50.18.32 HSK-C 50 32 300 0,003 0,003
C63.18.40 HSK-C 63 40 300 0,003 0,003
C80.18.40 HSK-C 80 40 300 0,003 0,003
C100.18.50 HSK-C 100 50 300 0,003 0,003
Lieferumfang:
Delivery:
Livraison:
Auslieferung mit Prüfprotokoll
Delivery with test certifi cate
Livraison avec rapport d essais
Wooden box for test arbors
Coffret en bois pour mandrins de contrôle
Verwendung:
Zur Aufbewahrung von Kontrolldornen.
Application:
For the storage of test arbors.
Application:
Pour la conservation de mandrins de contrôle.
4. 55
Bestell-Nr.
Order no.
Référence Abmessung
Size
Dimension für Kegelgrößen
for cones
pour cônes
701.18 460 × 130 × 115 HSK 32 / 40 / 50 / 63 / 80 / 100
KEMMLER
www.klte.cz
Holzkasten für Kontrolldorne
