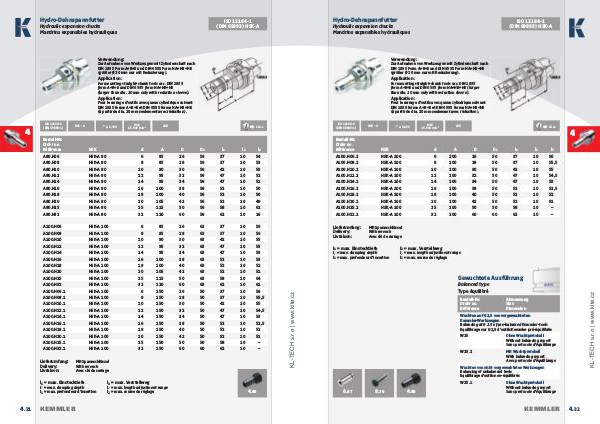

Hydro-Dehnspannfutter
ISO 12164-1
(DIN 69893) HSK-A
Hydraulic expansion chucks
Mandrins expansibles hydrauliques
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft nach
DIN 1835 Form A+B+E und DIN 6535 Form HA+HB+HE
(größer Ø 20 mm nur mit Reduzierung).
Application:
For mounting straight-shank tools acc. DIN 1835
form A+B+E and DIN 6535 form HA+HB+HE (larger
than dia. 20 mm only with reduction sleeve).
Application:
Pour le serrage d’outils avec queue cylindrique suivant
DIN 1835 forme A+B+E et DIN 6535 forme HA+HB+HE
(à partir de dia. 20 mm seulement avec réduction).
ISO 12164-1
(DIN 69893-1)
≤ 0,003
HSK - A
G6,3
15.000 min -1
13. 04
CAD
Bestell-Nr.
Order no.
Référence HSK d A D D 1 l 1 l 2 l 3
A100.H06.2 HSK-A 100 6 200 26 50 37 10 56
A100.H08.2 HSK-A 100 8 200 28 50 37 10 55,5
A100.H10.2 HSK-A 100 10 200 30 50 42 10 55
A100.H12.2 HSK-A 100 12 200 32 50 47 10 54,5
A100.H14.2 HSK-A 100 14 200 34 50 47 10 53
A100.H16.2 HSK-A 100 16 200 38 50 52 10 52,5
A100.H18.2 HSK-A 100 18 200 40 50 52 10 52
A100.H20.2 HSK-A 100 20 200 42 50 52 10 51
A100.H25.2 HSK-A 100 25 200 50 50 58 10 –
A100.H32.2 HSK-A 100 32 200 60 60 62 10 –
Lieferumfang:
Delivery:
Livraison:
4
Mit Spannschlüssel
With wrench
Avec clé de serrage
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion l 2 = max. length adjustment range
l 2 = max. course de réglage
Gewuchtete Ausführung
Bestell-Nr.
Order no.
Référence
www.klte.cz
Balanced type
Type équilibré
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
8.67
8.70
4.43
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
KEMMLER
4. 32
