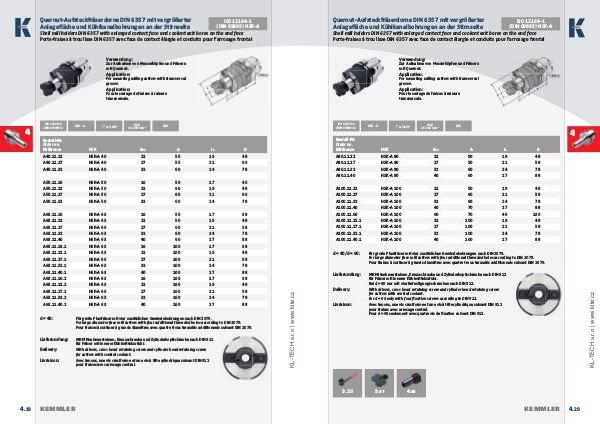

Quernut-Aufsteckfräserdorne DIN 6357 mit vergrößerter
Anlagefl äche und Kühlkanalbohrungen an der Stirnseite
ISO 12164-1
(DIN 69893) HSK-A
Shell mill holders DIN 6357 with enlarged contact face and coolant exit bores on the end face
Porte-fraises à trou lisse DIN 6357 avec face de contact élargie et conduits pour l‘arrosage frontal
Verwendung:
Zur Aufnahme von Messerköpfen und Fräsern
mit Quernut.
Application:
For mounting milling cutters with transversal
groove.
Application:
Pour le serrage de fraises à rainure
transversale.
G6,3
15.000 min -1
CAD
Bestell-Nr.
Order no.
Référence HSK d h6 A l 1 D
A40.11.22 HSK-A 40 22 50 19 48
A40.11.27 HSK-A 40 27 55 21 60
A40.11.32 HSK-A 40 32 60 24 78
A50.11.16 HSK-A 50 16 50 17 40
A50.11.22 HSK-A 50 22 60 19 48
A50.11.27 HSK-A 50 27 60 21 60
A50.11.32 HSK-A 50 32 60 24 78
A63.11.16 HSK-A 63 16 50 17 38
A63.11.22 HSK-A 63 22 50 19 48
A63.11.27 HSK-A 63 27 60 21 58
A63.11.32 HSK-A 63 32 60 24 78
A63.11.40 HSK-A 63 40 60 27 88
A63.11.16.1 HSK-A 63 16 100 17 38
A63.11.22.1 HSK-A 63 22 100 19 48
A63.11.27.1 HSK-A 63 27 100 21 58
A63.11.32.1 HSK-A 63 32 100 24 78
A63.11.40.1 HSK-A 63 40 100 27 88
A63.11.16.2 HSK-A 63 16 160 17 38
A63.11.22.2 HSK-A 63 22 160 19 48
A63.11.27.2 HSK-A 63 27 160 21 58
A63.11.32.2 HSK-A 63 32 160 24 78
A63.11.40.2 HSK-A 63 40 160 27 88
d = 40: Für große Planfräser mit vier zusätzlichen Gewindebohrungen nach DIN 2079.
For large diameter face mill cutters with four additional threaded holes according to DIN 2079.
Pour fraises à surfacer à grands diamètres avec quatre trous taraudés additionnels suivant DIN 2079.
Lieferumfang: Mit Mitnehmersteinen, Kreuzschraube und Zylinderkopfschraube nach DIN 912
für Fräser mit innerer Kühlmittelzufuhr.
With drivers, cross head retaining screw and cylinder head retaining screw
for cutters with central coolant.
Avec tenons, une vis cruciforme et une vis à tête cylindrique suivant DIN 912
pour fraises avec arrosage central.
Delivery:
Livraison:
4. 19
≤ 0,005
