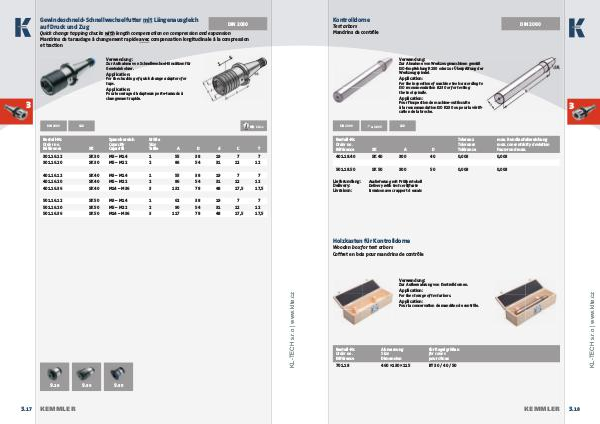

Kontrolldorne
DIN 2080
Test arbors
Mandrins de contrôle
Verwendung:
Zur Abnahme von Werkzeugmaschinen gemäß
ISO-Empfehlung R230 oder zur Überprüfung der
Werkzeugspindel.
Application :
For the inspection of machine tools according to
ISO recommendation R230 or for testing
the tool spindle.
Application:
3
Pour l‘inspection de machine-outils suite
à la recommandation ISO R230 ou pour la vérifi -
cation de la broche.
DIN 2080
≤ 0,003
Bestell-Nr.
Order no.
Référence SK
401.18.40 501.18.50
Lieferumfang:
Delivery:
Livraison:
CAD
Toleranz
Tolerance
Tolérance max. Rundlaufabweichung
max. concentricity deviation
Faux-rond max.
A D SK 40 300 40 0,003 0,003
SK 50 300 50 0,003 0,003
Auslieferung mit Prüfprotokoll
Delivery with test certifi cate
Livraison avec rapport d essais
Holzkasten für Kontrolldorne
Wooden box for test arbors
Coffret en bois pour mandrins de contrôle
Verwendung:
Zur Aufbewahrung von Kontrolldornen.
www.klte.cz
Application:
For the storage of test arbors.
Application:
Pour la conservation de mandrins de contrôle.
Bestell-Nr.
Order no.
Référence Abmessung
Size
Dimension für Kegelgrößen
for cones
pour cônes
701.18 460 ×130 ×115 BT 30 / 40 / 50
KEMMLER
3. 18
