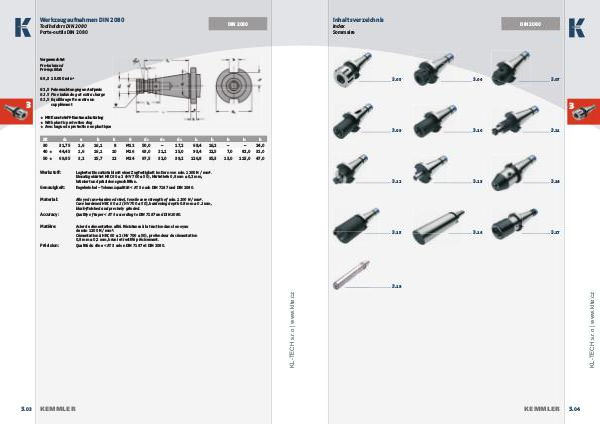

Werkzeugaufnahmen DIN 2080
DIN 2080
Toolholders DIN 2080
Porte-outils DIN 2080
Vorgewuchtet
Pre-balanced
Pré-équilibré
G 6,3 15.000 min –1
3
G 2,5 Feinwuchten gegen Aufpreis
G 2.5 Fine balancing at extra charge
G 2,5 Equilibrage fi n contre un
supplément
Mit Kunststoff-Kantenschutzring
With plastic protection ring
Avec bague de protection en plastique
SK
30 d 1
31,75 a
1,6 b
16,1 k
8 G
M12 d 2
50,0 d 3
– d 4
17,2 l 1
68,4 l 2
16,2 l 3
– l 4
– l 5
24,0
40 44,45 1,6 16,1 10 M16 63,0 21,1 25,0 93,4 22,5 7,0 82,0 32,0
50 69,85 3,2 25,7 12 M24 97,5 32,0 39,2 126,8 35,3 13,0 115,0 47,0
Werkstoff:
Genauigkeit:
Material:
Accuracy:
Matière:
Alloyed case-hardened steel, tensile core strength of min. 1200 N / mm².
Case hardened HRC 60 ± 2 (HV 700 ± 50), hardening depth 0.8 mm ± 0.2 mm,
black-fi nished and precisely grinded.
Quality of taper < AT 3 according to DIN 7187 and DIN 2080.
Acier de cémentation allié. Résistance à la traction dans le noyau
de min 1200 N / mm².
Cémentation à HRC 60 ± 2 (HV 700 ± 50), profondeur de cémentation
0,8 mm ± 0,2 mm, bruni et rectifi é précisement.
Qualité du cône < AT 3 selon DIN 7187 et DIN 2080.
