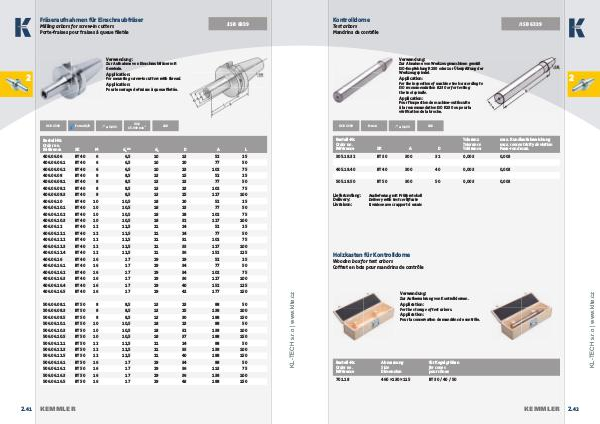

Kontrolldorne 69871 JIS DIN B 6339 Test arbors Mandrins de contrôle Verwendung: Zur Abnahme von Werkzeugmaschinen gemäß ISO-Empfehlung R230 oder zur Überprüfung der Werkzeugspindel. Application : For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle. 2 Application: Pour l‘inspection de machine-outils suite à la recommandation ISO R230 ou pour la vérifi cation de la broche. JIS B 6339  ≤  0,003 Form A Bestell-Nr. Order no. Référence SK 305.18.32 CAD Toleranz Tolerance Tolérance max. Rundlaufabweichung max. concentricity deviation Faux-rond max. A D BT 30 300 32 0,003 0,003 405.18.40 BT 40 300 40 0,003 0,003 505.18.50 BT 50 300 50 0,003 0,003 Lieferumfang: Delivery: Livraison: Auslieferung mit Prüfprotokoll Delivery with test certifi cate Livraison avec rapport d essais Holzkasten für Kontrolldorne Wooden box for test arbors Coffret en bois pour mandrins de contrôle www.klte.cz Verwendung: Zur Aufbewahrung von Kontrolldornen. Application: For the storage of test arbors. Application: Pour la conservation de mandrins de contrôle. Bestell-Nr. Order no. Référence Abmessung Size Dimension für Kegelgrößen for cones pour cônes 701.18 460 ×130 ×115 BT 30 / 40 / 50 KEMMLER 2. 42
