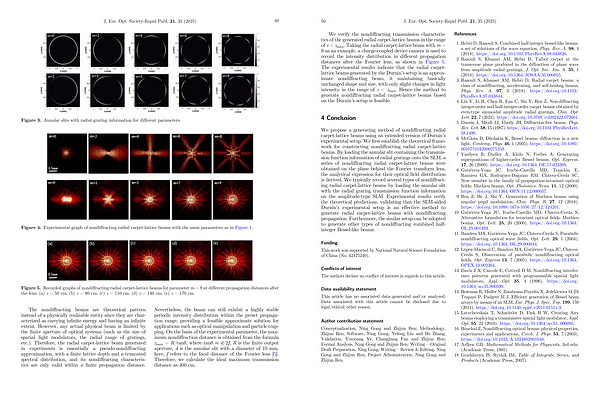

We verify the nondiffracting transmission characteristics of the generated radial carpet-lattice beams in the range of z < z max. Taking the radial carpet-lattice beam with m = 9 as an example, a charge-coupled device camera is used to record the intensity distribution in different propagation distances after the Fourier lens, as shown in Figure 5. The experimental results indicate that the radial carpetlattice beams generated by the Durnin’ s setup is an approximate nondiffracting beam, it maintaining basically unchanged shape and size, with only slight changes in light intensity in the range of z < z max. Hence the method to generate nondiffracting radial carpet-lattice beams based on the Durnin’ s setup is feasible.
4 Conclusion
We propose a generating method of nondiffracting radial carpet-lattice beams using an extended version of Durnin’ s experimental setup. We first establish the theoretical framework for constructing nondiffracting radial carpet-lattice beams. By loading the annular slit containing the transmission function information of radial gratings onto the SLM, a series of nondiffracting radial carpet-lattice beams were obtained on the plane behind the Fourier transform lens, the analytical expression for their optical field distribution is derived. We typically record several types of nondiffracting radial carpet-lattice beams by loading the annular slit with the radial grating transmission function information on the amplitude-type SLM. Experimental results verify the theoretical predictions, validating that the SLM-aided Durnin’ s experimental setup is an effective method to generate radial carpet-lattice beams with nondiffracting propagation. Furthermore, the similar setup can be adopted to generate other types of nondiffracting combined halfinteger Bessel-like beams.
Funding
This work was supported by National Natural Science Foundation of China( No. 62475240).
Conflicts of interest The authors declare no conflict of interest in regards to this article.
Data availability statement
This article has no associated data generated and / or analyzed. Data associated with this article cannot be disclosed due to legal / ethical / other reason.
Author contribution statement
Conceptualization, Ning Gong and Zhijun Ren; Methodology, Zhijun Ren; Software, Ning Gong, Yefeng Liu and Bo Zhang; Validation, Youxiang Ye, Changjiang Fan and Zhijun Ren; Formal Analysis, Ning Gong and Zhijun Ren; Writing – Original Draft Preparation, Ning Gong; Writing – Review & Editing, Ning Gong and Zhijun Ren; Project Administration, Ning Gong and Zhijun Ren.
References
1 Hebri D, Rasouli S, Combined half-integer bessel-like beams: a set of solutions of the wave equation, Phys. Rev. A. 98, 4( 2018). https:// doi. org / 10.1103 / PhysRevA. 98.043826. 2 Rasouli S, Khazaei AM, Hebri D, Talbot carpet at the transverse plane produced in the diffraction of plane wave from amplitude radial gratings, J. Opt. Soc. Am. A. 35, 1( 2018). https:// doi. org / 10.1364 / JOSAA. 35.000055.
3 Rasouli S, Khazaei AM, Hebri D, Radial carpet beams: a class of nondiffracting, accelerating, and self-healing beams, Phys. Rev. A. 97, 3( 2018). https:// doi. org / 10.1103 / PhysRevA. 97.033844.
4 Liu Y, Li H, Chen R, Fan C, Shi Y, Ren Z, Non-diffracting integer-order and half-integer-order carpet beams obtained by even-type sinusoidal amplitude radial gratings, Chin. Opt. Lett. 22, 7( 2024). https:// doi. org / 10.3788 / col202422.072601.
5 Durnin J, Miceli JJ, Eberly JH, Diffraction-free beams, Phys. Rev. Lett. 58, 15( 1987). https:// doi. org / 10.1103 / PhysRevLett. 58.1499.
6 McGloin D, Dholakia K, Bessel beams: diffraction in a new light, Contemp. Phys. 46, 1( 2005). https:// doi. org / 10.1080 / 0010751042000275259. 7 Vasilyeu R, Dudley A, Khilo N, Forbes A, Generating superpositions of higher-order Bessel beams, Opt. Express. 17, 26( 2009). https:// doi. org / 10.1364 / OE. 17.023389.
8 Gutiérrez-Vega JC, Iturbe-Castillo MD, Tepichin E, Ramírez GA, Rodriguez-Dagnino RM, Châvez-Cerda SC, New member in the family of propagation-invariant optical fields: Mathieu beams, Opt. Photonics. News. 11, 12( 2000). https:// doi. org / 10.1364 / OPN. 11.12.000037.
9 Ren Z, He J, Shi Y, Generation of Mathieu beams using angular pupil modulation, Chin. Phys. B. 27, 12( 2018). https:// doi. org / 10.1088 / 1674-1056 / 27 / 12 / 124201.
10 Gutiérrez-Vega JC, Iturbe-Castillo MD, Chávez-Cerda S, Alternative formulation for invariant optical fields: Mathieu beams, Opt. Lett. 25, 20( 2000). https:// doi. org / 10.1364 / OL. 25.001493.
11 Bandres MA, Gutiérrez-Vega JC, Chávez-Cerda S, Parabolic nondiffracting optical wave fields, Opt. Lett. 29, 1( 2004). https:// doi. org / 10.1364 / OL. 29.000044.
12 López-Mariscal C, Bandres MA, Gutiérrez-Vega JC, Chávez- Cerda S, Observation of parabolic nondiffracting optical fields, Opt. Express 13, 7( 2005). https:// doi. org / 10.1364 / OPEX. 13.002364.
13 Davis J A, Carcole E, Cottrell D M, Nondiffracting interference patterns generated with programmable spatial light modulators, Appl. Opt. 35, 4( 1996). https:// doi. org / 10.1364 / ao. 35.000599.
14 Bowman R, Muller N, Zambrana-Puyalto X, Jedrkiewicz O, Di Trapani P, Padgett M J, Efficient generation of Bessel beam arrays by means of an SLM, Eur. Phys. J. Spec. Top. 199, 159( 2011). https:// doi. org / 10.1140 / epjst / e2011-01511-3.
15 Latychevskaia T, Schachtler D, Fink H W, Creating Airy beams employing a transmissive spatial light modulator, Appl. Opt. 55, 22( 2016). https:// doi. org / 10.1364 / ao. 55. 006095.
16 Bouchal Z, Nondiffracting optical beams: physical properties, experiments and applications, Czech. J. Phys. 53, 7( 2003). https:// doi. org / 10.1023 / A: 1024802801048.
17 Arfken GB, Mathematical Methods for Physicists, 3rd edn.( Academic Press, 1985).
18 Gradshteyn IS, Ryzhik IM, Table of Integrals, Series, and Products( Academic Press, 2007).
