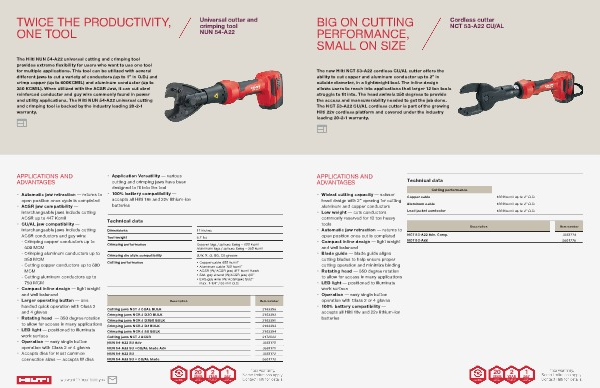

BIG ON CUTTING
PERFORMANCE,
SMALL ON SIZE
Cordless cutter
NCT 53-A22 CU/AL
The new Hilti NCT 53-A22 cordless CU/AL cutter offers the
ability to cut copper and aluminum conductor up to 2” in
outside diameter, in a lightweight tool. The inline design
allows users to reach into applications that larger 12 ton tools
struggle to fit into. The head swivels 350 degrees to provide
the access and maneuverability needed to get the job done.
The NCT 53-A22 CU/AL cordless cutter is part of the growing
Hilti 22v cordless platform and covered under the industry
leading 20-2-1 warranty.
APPLICATIONS AND
ADVANTAGES
• Widest cutting capacity — scissor
head design with 2” opening for cutting
aluminum and copper conductors
• Low weight — cuts conductors
commonly reserved for 12 ton heavy
tools
• Automatic jaw retraction — returns to
open position once cut is completed
• Compact inline design — light weight
and well balanced
• Blade guide — blade guide aligns
cutting blades to help ensure proper
cutting operation and minimize binding
• Rotating head — 350 degree rotation
to allow for access in many applications
• LED light — positioned to illuminate
work surface
• Operation — easy single button
operation with Class 2 or 4 gloves
• 100% battery compatibility —
accepts all Hilti 18v and 22v lithium-ion
batteries
Technical data
Cutting performance
Copper cable 1000 kcmil up to 2” O.D.
Aluminum cable 1000 kcmil up to 2” O.D.
Lead jacket conductor 1000 kcmil up to 2” O.D.
Description
Item number
NCT 53-A22 Adv. Comp. 3581774
NCT 53-A22 3581775
722/)/((7
0$1$*(0(17
<($5
/,0,7('
:$55$17<
<($5
:($5$1'7($5
&29(5$*(
'$<
5(3$,5
7851$5281'
Tool warranty.
Some limitations apply.
Contact Hilti for details.
