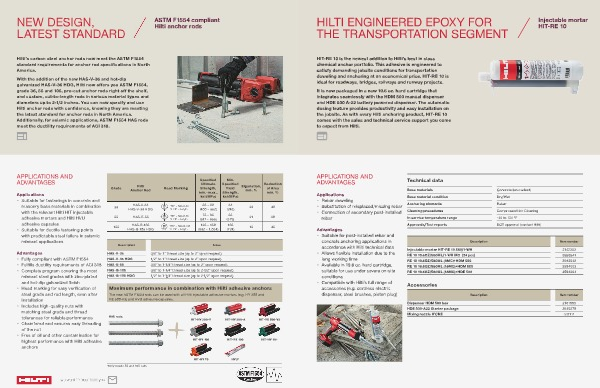

NEW DESIGN, LATEST STANDARD
ASTM F1554 compliant Hilti anchor rods
Hilti’ s carbon steel anchor rods now meet the ASTM F1554 standard requirements for anchor rod specifications in North America.
With the addition of the new HAS-V-36 and hot-dip galvanized HAS-V-36 HDG, Hilti now offers you ASTM F1554, grade 36, 55 and 105, pre-cut anchor rods right off the shelf, and custom, cut-to-length rods in various material types and diameters up to 2-1 / 2 inches. You can now specify and use Hilti anchor rods with confidence, knowing they are meeting the latest standard for anchor rods in North America. Additionally, for seismic applications, ASTM F1554 HAS rods meet the ductility requirements of ACI 318.
|
APPLICATIONS AND ADVANTAGES
Applications
• Suitable for fastenings in concrete and masonry base materials in combination with the relevant Hilti HIT injectable adhesive mortars and Hilti HVU adhesive capsules
• Suitable for ductile fastening points with predictable steel failure in seismic relevant applications
|
Grade
36
Hilti Anchor Rod
HAS-V-36 HAS-V-36 HDG
55 HAS-E-55
155
HAS-B-105 HAS-B-105 HDG
Description
|
Head Marking
HV 6 1 / 2
HE 6 1 / 2
HB 6 1 / 2
“ HV” = HAS-V-36“ 6 1 / 2” = Length
“ HE” = HAS-E-55“ 6 1 / 2” = Length
“ HB” = HAS-B-105“ 6 1 / 2” = Length
|
|
|
Specified Ultimate Strength, min.– max., ksi( MPa)
58 – 80( 400 – 552)
75 – 95( 517 – 655)
125 – 150( 862 – 1,034)
Sizes
Min. Specified Yield Strength, ksi( MPa)
36( 248)
55( 379)
105( 724)
|
Elgonation, min. %
Reduction of Area min. %
23 40
21 30
15 45
|
Advantages
• Fully compliant with ASTM F1554
• Fulfills ductility requirements of ACI 318
• Complete program covering the most relevant steel grades with zinc-plated and hot-dip galvanized finish
• Head marking for easy verification of steel grade and rod length, even after installation
• Includes high-quality nuts with matching steel grade and thread tolerances for reliable performance
• Chamfered end ensures easy threading of the nut
• Free of oil and other contamination for highest performance with Hilti adhesive anchors
HAS-V-36 |
3 / 8” to 1” thread size( up to 2” upon request) |
HAS-V-36 HDG |
1 / 2” to 1” thread size( up to 2” upon request) |
HAS-E-55 |
3 / 8” to 1-1 / 4” thread size( up to 2” upon request) |
HAS-B-105 |
3 / 8” to 1-1 / 4” thread size( up to 2-1 / 2” upon request) |
HAS-B-105 HDG |
1 / 2” to 1-1 / 4” thread size( up to 2-1 / 2” upon request) |
Maximum performance in combination with Hilti adhesive anchors
The new ASTM F1554 rods can be used with all Hilti injectable adhesive mortars( e. g. HY 200 and RE 500-V3) and HVU adhesive capsules.
HAS rods HIT-HY 200-R HIT-HY 200-A HIT-RE 500-V3
HIT-HY 100 HIT-RE 100 HIT-HY 10 +
HIT-HY 70 HVU *
