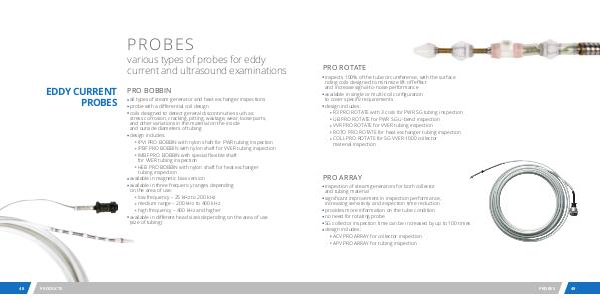

PRO ROTATE
inspects 100% of the tube circumference, with the surface
riding coils designed to minimize lift-off effect
and increase signal-to-noise performance
available in single or multi-coil configuration
to cover specific requirements
design includes:
R3 PRO ROTATE with 3 coils for PWR SG tubing inspection
UB PRO ROTATE for PWR SG U-bend inspection
VVR PRO ROTATE for VVER tubing inspection
ROTO PRO ROTATE for heat exchanger tubing inspection
COLL PRO ROTATE for SG VVER-1000 collector
material inspection
PRO ARRAY
inspection of steam generators for both collector
and tubing material
significant improvement in inspection performance,
increasing sensitivity and inspection time reduction
provides more information on the tube condition
no need for rotating probe
SG collector inspection time can be increased by up to 100 times
design includes:
ACV PRO ARRAY for collector inspection
APV PRO ARRAY for tubing inspection
PROBES
