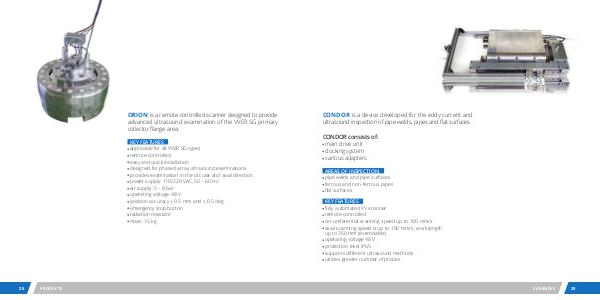

ORION is a remote-controlled scanner designed to provide
advanced ultrasound examination of the VVER SG primary
collector flange area.
KEY FEATURES
 applicable for all VVER SG types
 remote-controlled
 easy and quick installation
 designed for phased array ultrasound examinations
 provides examination in the circular and axial direction
 power supply: 110/220 VAC, 50 – 60 Hz
 air supply: 5 – 8 bar
 operating voltage: 48 V
 position accuracy ± 0.5 mm and ± 0.5 deg.
 emergency stop button
 radiation resistant
 mass: 15 kg
