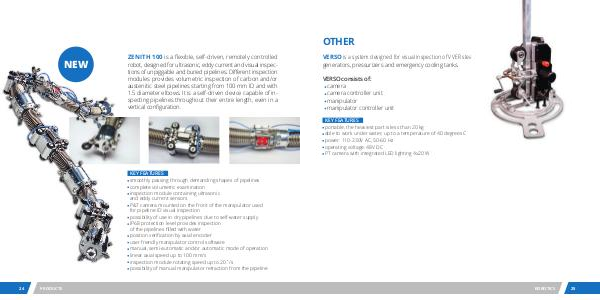

ZENITH 100 is a flexible, self-driven, remotely controlled
robot, designed for ultrasonic, eddy current and visual inspec-
tions of unpiggable and buried pipelines. Different inspection
modules provides volumetric inspection of carbon and/or
austenitic steel pipelines starting from 100 mm ID and with
1.5 diameter elbows. It is a self-driven device capable of in-
specting pipelines throughout their entire length, even in a
vertical configuration.
KEY FEATURES
smoothly passing through demanding shapes of pipelines
complete volumetric examination
 inspection module containing ultrasonic
and eddy current sensors
 P&T camera mounted on the front of the manipulator used
for pipeline ID visual inspection
 possibility of use in dry pipelines due to self-water supply
 IP68 protection level provides inspection
of the pipelines filled with water
 position verification by axial encoder
 user friendly manipulator control software
 manual, semi-automatic and/or automatic mode of operation
 linear axial speed up to 100 mm/s
 inspection module rotating speed up to 20˚/s
 possibility of manual manipulator retraction from the pipeline
