BALANCE-OF-PLANT
BALANCE-OF-PLANT

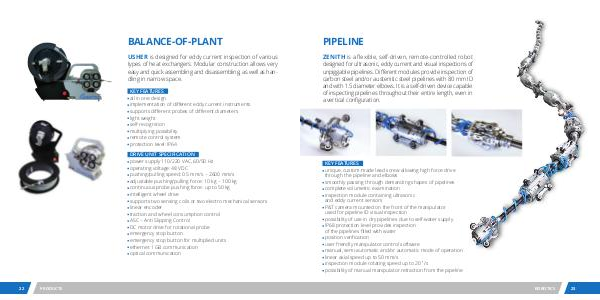

USHER is designed for eddy current inspection of various types of heat exchangers. Modular construction allows very easy and quick assembling and disassembling, as well as handling in narrow space.
KEY FEATURES all in one design implementation of different eddy current instruments supports different probes of different diameters light weight self-recognition multiplying possibility remote control system protection level: IP64
DRIVE UNIT SPECIFICATION power supply 110 / 220 VAC, 60 / 50 Hz operating voltage: 48 VDC pushing / pulling speed: 0.5 mm / s − 2600 mm / s adjustable pushing / pulling force: 10 kg − 100 kg continuous probe pushing force: up to 50 kg intelligent wheel drive supports two sensing coils or two electro mechanical sensors linear encoder traction and wheel consumption control ASC − Anti Slipping Control DC motor drive for rotational probe emergency stop button emergency stop button for multiplied units ethernet 1 GB communication optical communication
