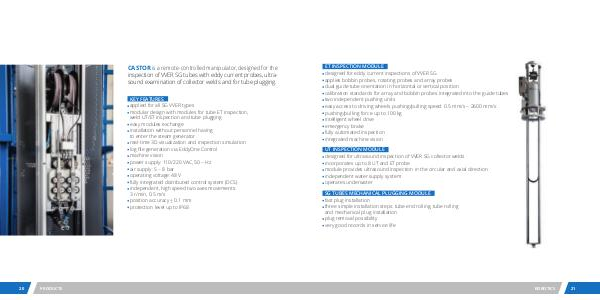

ET INSPECTION MODULE
 designed for eddy current inspections of VVER SG
 applies bobbin probes, rotating probes and array probes
 dual guide tube orientation in horizontal or vertical position
 calibration standards for array and bobbin probes integrated into the guide tubes
 two independent pushing units
 easy access to driving wheels pushing/pulling speed: 0.5 mm/s − 2600 mm/s
 pushing/pulling force up to 100 kg
 intelligent wheel drive
 emergency brake
 fully automated inspection
 integrated machine vision
UT INSPECTION MODULE
 designed for ultrasound inspection of VVER SG collector welds
 incorporates up to 8 UT and ET probe
 module provides ultrasound inspection in the circular and axial direction
 independent water supply system
 operates underwater
SG TUBES MECHANICAL PLUGGING MODULE
 fast plug installation
 three simple installation steps: tube end rolling, tube rolling
and mechanical plug installation
 plug removal possibility
 very good records in service life
