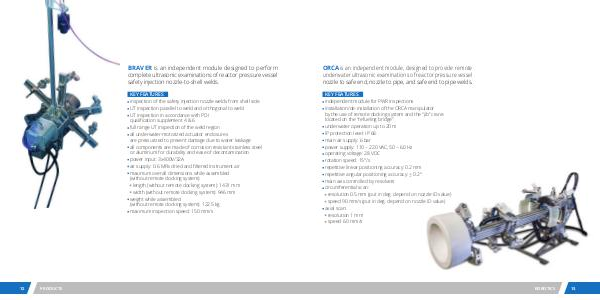

BRAVER is an independent module designed to perform
complete ultrasonic examinations of reactor pressure vessel
safety injection nozzle-to-shell welds.
KEY FEATURES
inspection of the safety injection nozzle welds from shell side
UT inspection parallel to weld and orthogonal to weld
UT inspection in accordance with PDI
qualification supplement 4 & 6
full range UT inspection of the weld region
all underwater-motorized actuator enclosures
are pressurized to prevent damage due to water leakage
all components are made of corrosion resistant stainless steel
or aluminum for durability and ease of decontamination
power input: 3x400V/32A
air supply: 0.6 MPa dried and filtered instrument air
maximum overall dimensions while assembled
(without remote docking system):
length (without remote docking system): 1431 mm
width (without remote docking system): 946 mm
weight while assembled
(without remote docking system): 122.5 kg
maximum inspection speed: 150 mm/s
