Connectivity Framework 1: Introduction
1 INTRODUCTION
Ubiquitous connectivity is one of the foundational technologies enabling data sharing amongst participating components of an Industrial Internet of Things( IIoT) system.
Connectivity provides the ability to exchange data amongst participants within a functional domain, across functional domains within a system and across systems. The data exchanged may include sensor updates, events, alarms, status changes, commands, and configuration updates. Connectivity is a crosscutting function across the functional domains defined by the Industrial Internet Reference Architecture 1, as shown in Figure 1-1.
Human Users
Functional Domains Business
Sense
Actuation
Physical Systems
Green Arrows: Data / Information Flows Grey / White Arrows: Decision Flows Red Arrows: Command / Request Flows

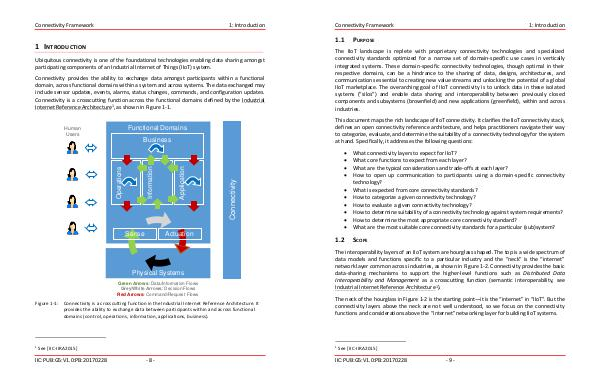

Figure 1-1: Connectivity is a crosscutting function in the Industrial Internet Reference Architecture. It provides the ability to exchange data between participants within and across functional domains( control, operations, information, applications, business).
1
See [ IIC-IIRA2015 ] IIC: PUB: G5: V1.0: PB: 20170228- 8-
