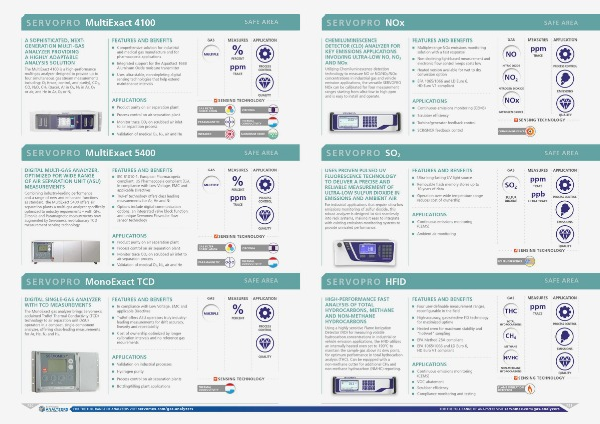

S E R V O P R O MultiExact 4100
A SOPHISTICATED, NEXT-
GENERATION MULTI-GAS
ANALYZER PROVIDING
A HIGHLY ADAPTABLE
ANALYSIS SOLUTION FEATURES AND BENEFITS
The MultiExact 4100 is a high-performance
multi-gas analyzer designed to provide up to
four simultaneous gas stream measurements
including: O 2 (trace, control, and purity), CO 2 ,
CO, N 2 O, CH 4 (trace), Ar in O 2 , N 2 in Ar, O 2
or air, and He in Ar, O 2 or N 2 . Integrated support for the AquaXact 1688
Aluminum Oxide moisture transmitter
Uses ultra-stable, non-depleting digital
sensing technologies that help extend
maintenance intervals
Comprehensive solution for industrial
and medical gas manufacture and for
pharmacopeia applications
SAFE AREA
MEASURES
GAS
MULTIPLE
%
PERCENT
ppm
QUALITY
SENSING TECHNOLOGY
SAFE AREA
CHEMILUMINESCENCE
DETECTOR (CLD) ANALYZER FOR
KEY EMISSIONS APPLICATIONS
INVOLVING ULTRA-LOW NO, NO 2
AND NOx FEATURES AND BENEFITS
Utilizing Chemiluminescence detection
technology to measure NO or NO/NO 2 /NOx
concentrations in industrial gas and vehicle
emission applications, the versatile SERVOPRO
NOx can be calibrated for four measurement
ranges starting from ultra-low to high ppm
and is easy to install and operate. Heated version available for wet to dry
conversion option
Non-depleting light-based measurement and
electronic flow control keeps costs low
EPA 1065/1066 and LD Euro 6,
HD Euro V1 compliant
Process control on air separation plant Scrubber efficiency
Monitor trace CO 2 on scrubbed air inlet
to air separation process
S E R V O P R O MultiExact 5400
FEATURES AND BENEFITS
IEC 61010-1. European Pharmacopeia
compliant. US Pharmacopeia compliant (O 2 ).
In compliance with Low Voltage, EMC and
applicable Directives
TruRef technology offers class leading
measurements for Ar, He and N 2
Options include digital communication
options, an integrated valve block function
and unique Servomex Flowcube flow
sensor technology
SCR/SNCR feedback control
SAFE AREA
GAS MEASURES
MULTIPLE %
APPLICATION
PERCENT
ppm
TRACE
PROCESS
CONTROL
QUALITY
APPLICATIONS
TRACE
NITRIC OXIDE
PROCESS CONTROL
NO 2
NITROGEN DIOXIDE
EMISSIONS
NOx
NITROGEN OXIDES
QUALITY
SENSING TECHNOLOGY
Turbine/generator feedback control
ALUMINUM OXIDE
CHEMILUMINESCENCE
S E R V O P R O SO 2
USES PROVEN PULSED UV
FLUORESCENCE TECHNOLOGY
TO DELIVER A PRECISE AND
RELIABLE MEASUREMENT OF
ULTRA-LOW SULFUR DIOXIDE IN
EMISSIONS AND AMBIENT AIR
For industrial applications that require ultra-low
emissions monitoring of sulfur dioxide, this
robust analyzer is designed to slot seamlessly
into rack systems, making it easy to integrate
with existing emissions monitoring systems to
provide unrivaled performance.
SAFE AREA
FEATURES AND BENEFITS
MEASURES
GAS
Removable flash memory stores up to
10 years of data SO 2
Operation over wide temperature range
reduces cost of ownership SULFUR
DIOXIDE
TRACE
ppb
Continuous emissions monitoring
(CEMS)
EMISSIONS
Ambient air monitoring
SENSING TECHNOLOGY
QUALITY
SENSING TECHNOLOGY
Monitor trace CO 2 on scrubbed air inlet to
air separation process
UV FLUORESCENCE
Validation of medical O 2 , N 2 , air and He
S E R V O P R O MonoExact TCD
FEATURES AND BENEFITS
The MonoExact gas analyzer brings Servomex’s
acclaimed TruRef Thermal Conductivity (TCD)
technology to air separation unit (ASU)
operators in a compact, single-component
analyzer, offering class-leading measurements
for Ar, He, N 2 and H 2 .
In compliance with Low Voltage, EMC and
applicable Directives
TruRef offers ASU operators truly industry-
leading measurements for drift accuracy,
linearity and repeatability
Cost of ownership optimized by longer
calibration intervals and no reference gas
requirements
APPLICATIONS
SAFE AREA
GAS MEASURES
MULTIPLE %
APPLICATION
PERCENT
PROCESS
CONTROL
QUALITY
Validation on industrial processes
Hydrogen purity
Process control on air separation plants
Bottling/filling plant applications
SENSING TECHNOLOGY
S E R V O P R O HFID
SAFE AREA
HIGH-PERFORMANCE FAST
ANALYSIS OF TOTAL
HYDROCARBONS, METHANE
AND NON-METHANE
HYDROCARBONS FEATURES AND BENEFITS
Using a highly sensitive Flame Ionization
Detector (FID) for measuring volatile
hydrocarbon concentrations in industrial or
vehicle emission applications, the HFID utilizes
an internally heated oven set to 190 o C to
maintain the sample gas above its dew point,
for optimum performance in total hydrocarbon
analysis (THC). Can be equipped with a
non-methane cutter for additional CH 4 and
non-methane hydrocarbon (NMHC) reporting. Heated oven for maximum stability and
"hot/wet" sampling
High-accuracy, gas-selective FID technology
for maximized uptime
FOR THE FULL RANGE OF ANALYZERS VISIT
servomex.com/gas-analyzers
APPLICATION
ppm
THC
TRACE
TOTAL
HYDROCARBONS
PROCESS CONTROL
CH 4
EPA Method 25A compliant
MEASURES
GAS
Four user-definable measurement ranges,
reconfigurable in the field
EPA 1065/1066 and LD Euro 6,
HD Euro V1 compliant
METHANE
EMISSIONS
NMHC
APPLICATIONS
Continuous emissions monitoring
(CEMS)
NON-METHANE
HYDROCARBONS
Scrubber efficiency
QUALITY
SENSING TECHNOLOGY
VOC abatement
Compliance monitoring and testing
P20
PROCESS CONTROL
ULTRA TRACE
APPLICATIONS
Process control on air separation plant
DIGITAL SINGLE-GAS ANALYZER
WITH TCD MEASUREMENTS
APPLICATION
ppm
Ultra-long-lasting UV light source
Product purity on air separation plant
APPLICATION
ppm
NO
APPLICATIONS
Continuous emissions monitoring (CEMS)
MEASURES
GAS
Multiple-range NOx emissions monitoring
solution with a fast response
Product purity on air separation plant
Validation of medical O 2 , N 2 , air and He
Combining industry-leading performance
and a range of new and enhanced functions
as standard, the MultiExact 5400 offers air
separation plants a multi-gas analyzer specifically
optimized to industry requirements – with GFx,
Zirconia and Paramagnetic measurements now
augmented by Servomex’s revolutionary TCD
measurement sensing technology.
PROCESS
CONTROL
TRACE
APPLICATIONS
DIGITAL MULTI-GAS ANALYZER,
OPTIMIZED FOR WIDE RANGE
OF AIR SEPARATION UNIT (ASU)
MEASUREMENTS
APPLICATION
S E R V O P R O NOx
FLAME IONIZATION
DETECTOR
FOR THE FULL RANGE OF ANALYZERS VISIT
servomex.com/gas-analyzers
P21
