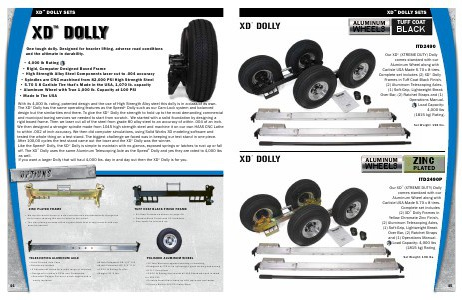

XD™ Dolly Sets XD™ Dolly Sets Dolly Mounts XD DOLLY ™ XD DOLLY ™ ZInc Plated Frame Tuff Coat Black Finish Frame • Six Step Process as shown on page 49 • Durable Black Finish with UV inhibiters. • Can easily be touched up. Telescoping aluminum Axle 44 Set Weight: 198 lbs. XD DOLLY ™ ALUMINUM WHEELS ZINC PLATED ITD2490P • We dip the whole frame in a zinc solution and electrostatically charge the dolly frame causing the zinc to bond to the metal. • The zinc plating process offers a great finish that is very durable and can even be painted. •Huck Riveted Axle Caps •Robotically welded •4 Adjustment Holes for a wide range of vehicles •Designed for today’s SUVs and Crossovers •Rounded Plunger Pin won’t pinch fingers and is easily replaced BLACK Our XD™ (XTREME DUTY) Dolly comes standard with our Aluminum Wheel along with Carlisle USA Made 5.70 x 8 tires. Complete set includes (2) XD™ Dolly Frames in Tuff Coat Black Finish, (2) Aluminum Telescoping Axles, (1) Soft-Grip, Lightweight Break Over Bar, (2) Ratchet Straps and (1) Operations Manual. Load Capacity: 4,000 lbs (1815 kg) Rating. • 4,000 lb Rating • Rigid, Computer Designed Boxed Frame • High Strength Alloy Steel Components laser cut to .004 accuracy • Spindles are CNC machined from 82,000 PSI High Strength Steel • 5.70 X 8 Carlisle Tire that’s Made in the USA, 1,070 lb. capacity • Aluminum Wheel with True 1,000 lb. Capacity at 100 PSI • Made In The USA OPTIONS WHEELS TUFF COAT ITD2490 One tough dolly. Designed for heavier lifting, adverse road conditions and the ultimate in durability. With its 4,000 lb. rating, patented design and the use of High Strength Alloy steel this dolly is in a class of its own. The XD™ Dolly has the same operating features as the Speed® Dolly such as our Cam-Lock system and balanced design but the similarities end there. To give the XD™ Dolly the strength to hold up to the most demanding commercial and municipal towing services we needed to start from scratch. We started with a solid foundation by designing a rigid boxed frame. Then we laser cut all of the steel from grade 80 alloy steel to an accuracy of within .004 of an inch. We then designed a stronger spindle made from 1045 high strength steel and machine it on our own HAAS CNC Lathe to within .002 of inch accuracy. We then did computer simulations, using Solid Works 3D modeling software and tested the whole thing on a test stand. The biggest challenge we faced was in keeping our test stand in one piece. After 100,00 cycles the test stand came out the loser and the XD™ Dolly was the winner. Like the Speed® Dolly, the XD™ Dolly is simple to maintain with no gizmos, exposed springs or latches to rust up or fall off. The XD™ Dolly uses the same Aluminum Telescoping Axle as the Speed® Dolly and yes they are rated to 4,000 lbs as well. If you want a larger Dolly that will haul 4,000 lbs. day in and day out then the XD™ Dolly is for you. ALUMINUM Polished aluminum wheel •Width Collapsed: 58 1/2” O.D. •Width Extended: 82 1/2” O.D. •4,000 lb Rating Per Set •Weight: 21.5 lbs. •10 Year Warranty against bending or breaking •Designed by ITD to be lightweight, good looking and strong •D.O.T. Compliant •1,000 lb Rating that meets all SAE Standards and is rated for 100 PSI •Durable finish that cleans up with just soap and water •Chrome Bolt-In 100 PSI Valve Stem Our XD™ (XTREME DUTY) Dolly comes standard with our Aluminum Wheel along with Carlisle USA-Made 5.70 x 8 tires. Complete set includes (2) XD™ Dolly Frames in Yellow Chromate Zinc Finish, (2) Aluminum Telescoping Axles, (1) Soft-Grip, Lightweight Break Over Bar, (2) Ratchet Straps and (1) Operations Manual. Load Capacity: 4,000 lbs (1815 kg) Rating Set Weight: 198 lbs. 45
