Heat Exchanger Design
»

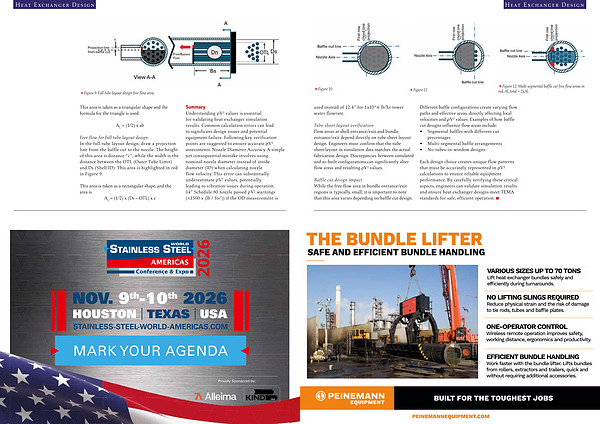

Figure 9: Full tube layout design free flow area.
This area is taken as a triangular shape and the formula for the triangle is used:
A L
=( 1 / 2) x ab
Free flow for full tube layout design In the full tube layout design, draw a projection line from the baffle cut to the nozzle. The height of this area is distance“ c”, while the width is the distance between the OTL( Outer Tube Limit) and Ds( Shell ID). This area is highlighted in red in Figure 9.
This area is taken as a rectangular shape, and the area is
A L
=( 1 / 2) x( Ds – OTL) x c
Summary Understanding ρV ² values is essential for validating heat exchanger simulation results. Common calculation errors can lead to significant design issues and potential equipment failure. Following key verification points are suggested to ensure accurate ρV ² assessments. Nozzle Diameter Accuracy A simple yet consequential mistake involves using nominal nozzle diameter instead of inside diameter( ID) when calculating nozzle flow velocity. This error can substantially underestimate ρV ² values, potentially leading to vibration issues during operation. 14” Schedule 80 nozzle passed ρV ² warnings(< 1500 x( lb / fts 2)) if the OD measurement is
