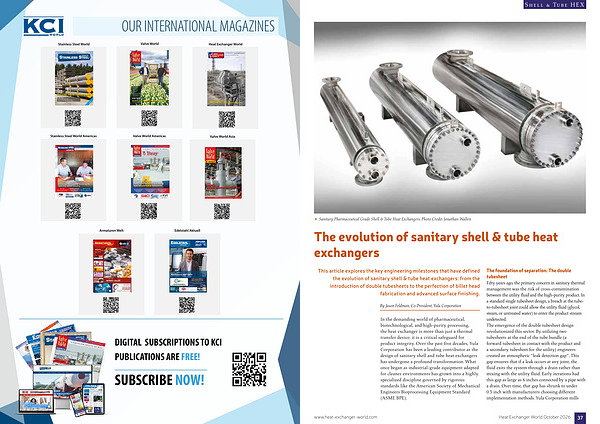

Sanitary Pharmaceutical Grade Shell & Tube Heat Exchangers. Photo Credit: Jonathan Wallen
The evolution of sanitary shell & tube heat exchangers
This article explores the key engineering milestones that have defined the evolution of sanitary shell & tube heat exchangers: from the introduction of double tubesheets to the perfection of billet head fabrication and advanced surface finishing.
By Jason Feldman, Co-President, Yula Corporation
In the demanding world of pharmaceutical, biotechnological, and high-purity processing, the heat exchanger is more than just a thermal transfer device; it is a critical safeguard for product integrity. Over the past five decades, Yula Corporation has been a leading contributor as the design of sanitary shell and tube heat exchangers has undergone a profound transformation. What once began as industrial-grade equipment adapted for cleaner environments has grown into a highly specialized discipline governed by rigorous standards like the American Society of Mechanical Engineers Bioprocessing Equipment Standard( ASME BPE).
The foundation of separation: The double tubesheet Fifty years ago, the primary concern in sanitary thermal management was the risk of cross-contamination between the utility fluid and the high-purity product. In a standard single tubesheet design, a breach at the tubeto-tubesheet joint could allow the utility fluid( glycol, steam, or untreated water) to enter the product stream undetected. The emergence of the double tubesheet design revolutionized this sector. By utilizing two tubesheets at the end of the tube bundle( a forward tubesheet in contact with the product and a secondary tubesheet for the utility) engineers created an atmospheric“ leak detection gap”. This gap ensures that if a leak occurs at any joint, the fluid exits the system through a drain rather than mixing with the utility fluid. Early iterations had this gap as large as 6 inches connected by a pipe with a drain. Over time, that gap has shrunk to under 0.5 inch with manufacturers choosing different implementation methods. Yula Corporation mills www. heat-exchanger-world. com Heat Exchanger World October 2026
